MAXIM INTEGRATED / ANALOG DEVICES MAX195BCWE 16-bit ADC
The MAX195BCWE+ is a 16-bit, 85 kilosamples per second (Ksps) analog-to-digital converter (ADC) housed in an 16-pin WSOIC package. It features high speed and precision, low power consumption, and a shutdown mode that consumes only 10 microamps. The internal calibration circuitry corrects linearity and offset errors, ensuring optimal performance over the entire operating temperature range without external adjustments. Its capacitive-DAC architecture provides an inherent track/hold function at 85 Ksps. The ADC can operate with an external reference voltage up to 5V, supporting both unipolar (0V to VREF) and bipolar (-VREF to VREF) input ranges, selectable via a pin. It uses a serial interface compatible with SPI, with chip select controls for three-state data output. The data can be read during conversion or after, at speeds up to 5 Mbps. The device features a conversion time of approximately 9.4 microseconds, supports differential and single-ended inputs, maintains a 90 dB SINAD with 16-bit resolution and no missing codes, and separates analog and digital supplies to reduce digital noise coupling. Applications include signal processing, avionics, and portable devices. Note that market demand has extended lead times, and delivery dates may vary. This product is exempt from discounts.
MAXIM INTEGRATED / ANALOG DEVICES MAX195BCWE 16-bit ADC Specifications:
- Resolution: 16 Bits
- Sampling Rate: 85Ksps
- Conversion Time: 9.4 microseconds
- Power Consumption: 10 microamps in shutdown mode
- Input Voltage Range: 0V to VREF (unipolar) or -VREF to VREF (bipolar), up to 5V external reference
- Input Architecture: Capacitive DAC with inherent track/hold function
- Output Interface: Serial SPI-compatible, data up to 5 Mbps
- Number of Pins: 16 in WSOIC package
- Supports differential and single-ended inputs
- Supported temperature range: 0°C to +70°C (standard), -40°C to +125°C (extended variants)
- Includes internal calibration circuitry for linearity and offset correction
- Separate analog and digital power supplies to minimize digital noise coupling
- Suitable for signal processing, portable devices, avionics, and industrial controls

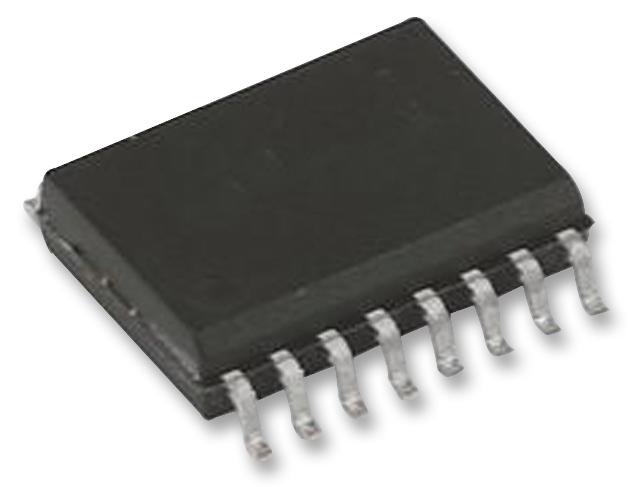

Buy the Buy MAXIM MAX195BCWE+ Part Number MAX195BCWE+ Online
Purchase the MAX195BCWE+ online today and benefit from its high-speed 85Ksps conversion, low power shutdown mode, and built-in calibration for optimal accuracy. This 16-bit ADC supports both unipolar and bipolar input ranges with a flexible serial interface, making it ideal for signal processing, portable devices, and avionics. Its internal calibration ensures precise linearity and offset correction over wide temperature ranges. Fast and reliable, factory availability, extended lead times apply, and delivery may vary. Secure your high-performance ADC now for your demanding applications.
Buy MAXIM MAX195BCWE+ now and experience unmatched reliability and performance in high-speed, low-power analog-to-digital conversion.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX195BCWE?
You can click on the BUY or RFQ button to purchase MAX195BCWE from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX195BCWE?
You can download the MAX195BCWE datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX195BCWE?
MAXIM INTEGRATED / ANALOG DEVICES
