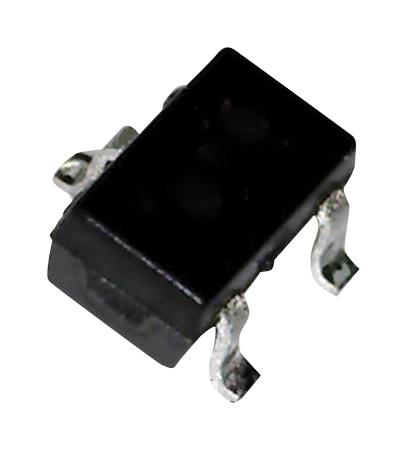

MAXIM INTEGRATED / ANALOG DEVICES LM4040BIX350T Voltage Reference
The LM4040BIX350T is a high-precision, micropower shunt voltage reference device designed for space-critical applications. It provides a stable, accurate voltage output with various reverse breakdown voltages, such as 2.048V, 2.5V, 3.0V, 3.3V, 4.096V, and 5.0V, in a compact SC70 surface-mount package. Features include laser-trimmed resistors for initial accuracy, a 100ppm/°C temperature coefficient, and a wide operating current range of 60uA to 15mA. No external capacitor is required to ensure stability across capacitive loads, making it ideal for portable, battery-powered equipment, notebook computers, and industrial controls.
MAXIM INTEGRATED / ANALOG DEVICES LM4040BIX350T Voltage Reference Specifications:
- Package: SC70 surface-mount, 3-pin
- Reverse Breakdown Voltage: 2.048V, 2.5V, 3.0V, 3.3V, 4.096V, 5.000V (selectable)
- Initial Accuracy: 0.2%
- Temperature Coefficient: 100ppm/°C
- Operating Current Range: 60uA to 15mA
- Reverse Dynamic Impedance: 0.3 to 0.9 Ohms
- Output Noise: 28-80uV RMS from 10Hz to 10kHz
- Long-term Stability: 120ppm over 1000 hours
- Works without external capacitors, stable with capacitive loads
- Operating Temperature Range: -40°C to +125°C
- Max Power Dissipation (at Ta=+70°C): Derates 2.17mW/°C
- Junction Temperature: Max +150°C
- Lead Soldering Temperature: 10s reflow, up to +260°C
- Compliance: RoHS, lead-free
Buy the Maxim Series LM4040 Voltage Reference: LM4040BIX350T
Purchase the Maxim Series LM4040BIX350T online today and equip your electronic projects with a reliable, ultra-precise voltage reference. Its small SC70 package is perfect for space-constrained designs like portable devices and industrial systems. With guaranteed accuracy of 0.2% and a temperature coefficient of 100ppm/°C, it ensures stable performance across a wide temperature range from -40°C to +125°C. No external capacitors are required, reducing component count and simplifying your circuit. Order now to benefit from fast delivery and quality assurance for your critical applications.
Order your Maxim Series LM4040BIX350T today and ensure your designs have a highly accurate, low-noise voltage reference for critical applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES LM4040BIX350T?
You can click on the BUY or RFQ button to purchase LM4040BIX350T from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part LM4040BIX350T?
You can download the LM4040BIX350T datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of LM4040BIX350T?
MAXIM INTEGRATED / ANALOG DEVICES
