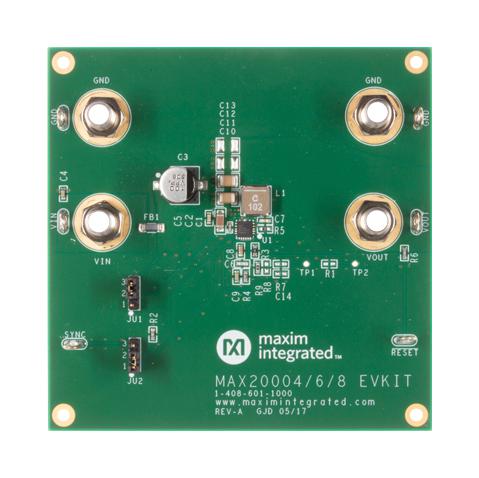

MAXIM INTEGRATED / ANALOG DEVICES MAX20006EVKIT High-Efficiency DC-DC Converter Evaluation Kit

Evaluation kit for the MAX20006 features a high-efficiency synchronous DC-DC converter with integrated FETs, operating across a voltage range of 3.5V to 36V. It offers a no-load quiescent current of 25μA in skip mode and supports adjustable switching frequency from 220 kHz to 2.2 MHz, with external synchronization capability. The kit includes an internal soft-start and provides fixed output voltages of 3.3V or 5.0V, or a resistor-adjustable output from 1V to 10V. It also supports low dropout operation with up to 98% duty cycle and has an active-low reset output.

View MAX20006EVKITDatasheet [pdf]

Buy the Buy MAXIM Integrated MAX20006EVKIT Online

Experience the trusted performance of the MAX20006 high-efficiency DC-DC converter evaluation kit. Designed for voltages from 3.5V to 36V, it features adjustable switching frequency, internal soft-start, and fixed or resistor-programmed output options. The kit supports low quiescent current in skip mode, up to 98% duty cycle dropout operation, and external synchronization. It is ideal for engineers seeking a reliable power management solution with easy-to-use features, proven PCB layout, and fully assembled testing capability to streamline development processes.

Buy MAXIM MAX20006EVKIT now and experience a high-efficiency, versatile power conversion solution with adjustable frequency and reliable reset features.
