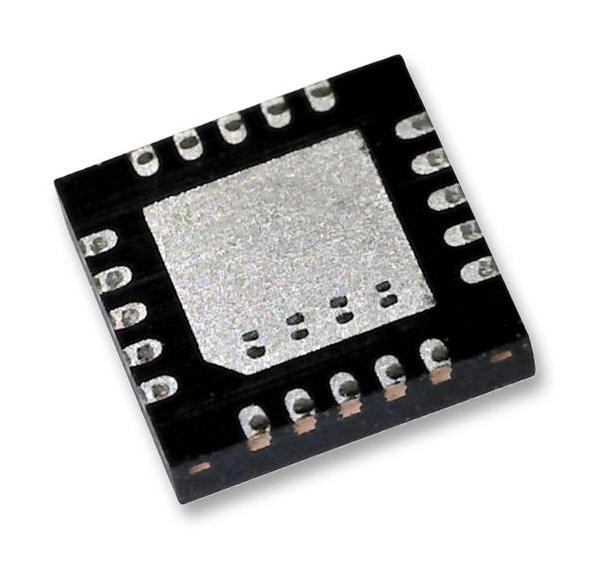

MAXIM INTEGRATED / ANALOG DEVICES MAX20010CATPJV Automotive Voltage Regulator
The MAX20010C/MAX20010D are high-efficiency, synchronous step-down voltage regulators designed for automotive applications. Operating from 3.0V to 5.5V, they deliver up to 6A load current with excellent accuracy and transient response. These ICs feature spread-spectrum modulation, dynamic voltage adjustments via I2C, programmable soft-start, and overcurrent and overtemperature protections. Their compact 20-pin TQFN package simplifies PCB design, making them ideal for onboard power regulation, processor supply, and automotive electronics requiring reliable, precise voltage regulation with low noise and EMI compliance.
MAXIM INTEGRATED / ANALOG DEVICES MAX20010CATPJV Automotive Voltage Regulator Specifications:
- Input Voltage Range: 3.0V to 5.5V
- Output Voltage Range: 0.5V to 1.5875V (programmable in steps)
- Maximum Load Current: 6A
- Operating Temperature: -40°C to +125°C
- Switching Frequency: 2.2MHz fixed, supports spread spectrum +3%
- Packages: 20-pin TQFN (4mm x 4mm) with exposed pad
- Protection: Overtemperature, overcurrent, short circuit, UV/OV sense
- Power-Good Output: Active low, with delay and leak current <1μA
- I2C Interface: 2-wire, up to 3.4MHz, configurable address
- Soft-start, programmable slew rate, optional spread spectrum, and sync modes
- Industrial and automotive qualified (AECQ-100)
Buy the Buy Maxim Integrated Automotive Voltage Regulator Part Number MAX20010CATPJV Online
Get your MAX20010CATPJV now from authorized distributors and enjoy fast shipping, secure checkout, and competitive prices. This high-efficiency automotive voltage regulator delivers up to 6A of load current with a wide input range from 3.0V to 5.5V. Its programmable output voltage from 0.5V to 1.5875V in fine steps ensures precise power delivery. Featuring spread-spectrum modulation to reduce EMI, integrated protections, and a compact 20-pin TQFN package, it simplifies PCB design, reduces system noise, and enhances reliability for automotive applications. Order today for fast delivery and trusted performance.
Buy Maxim Integrated MAX20010CATPJV now and experience unmatched reliability, high current output, and precise power regulation suitable for automotive electronics.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX20010CATPJV?
You can click on the BUY or RFQ button to purchase MAX20010CATPJV from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX20010CATPJV?
You can download the MAX20010CATPJV datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX20010CATPJV?
MAXIM INTEGRATED / ANALOG DEVICES
