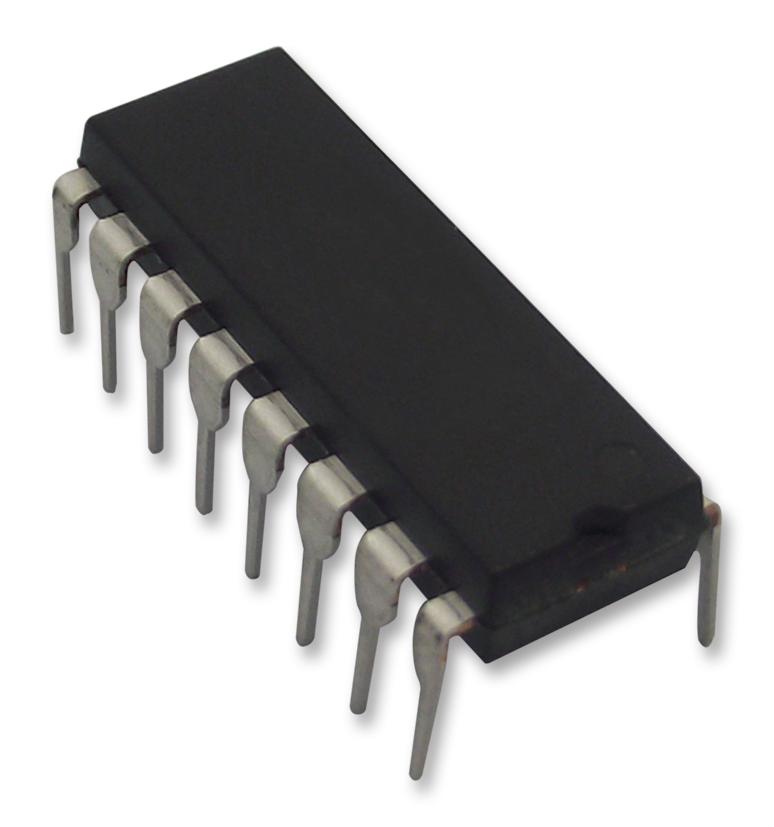

MAXIM INTEGRATED / ANALOG DEVICES MAX314CPE Quad Analog Switch
The MAX314CPE is a quad, CMOS, analog switch featuring low on-resistance, high accuracy matching, and low leakage suitable for audio, signal routing, and high-frequency applications. Designed for single or dual supply operation from +4.5V to +30V or +4.5V to +20V, it offers excellent off isolation and low distortion characteristics, making it optimal for test equipment, communication systems, and avionics. With a pin-compatible design and high ESD protection, this switch delivers reliable performance in varied industrial and electronic applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX314CPE Quad Analog Switch Specifications:
- Type: CMOS analog switch
- Channels: 4 (quad, SPST)
- On-Resistance: 10Ω max at V+
- On-Resistance Match: 1.5Ω max between channels
- Leakage Current: 0.02nA typical at 25°C
- Supply Voltage Range: +4.5V to +30V (single), +4.5V to +20V (dual)
- Operating Temperature: -55°C to +125°C
- Package: 16-pin DIP, SO, TSSOP, or CERDIP
- Isolation: -2dB at above 100MHz, decreases at higher frequencies
- Capacitance (On): 87pF, (Off): 16pF at 1MHz
- Protection: ESD >2000V, RoHS compliant
- Power Dissipation: 800mW at Ta=70°C
- Switching Time: 100-325ns (turn-on), 225-425ns (turn-off)
- Applications: Audio signal routing, test equipment, communication systems, avionics, data acquisition
