MAXIM INTEGRATED / ANALOG DEVICES MAX20029BATIAV Power Management IC
The automotive power-management ICs integrate four high-efficiency, step-down DC-DC converters operating from 3.0V to 5.5V supply voltage. They feature adjustable output voltages between 0.7V and 4.0V or fixed options, with a switching frequency of 2.2MHz optimized for automotive EMI performance. Each converter provides up to 1.5A load current, includes comprehensive protections such as overvoltage, undervoltage lockout, thermal shutdown, and current limit, and supports spread spectrum and external synchronization. Packaged in a 28-pin TQFN with exposed pad, they are rated for -40°C to +125°C operation for automotive and industrial applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX20029BATIAV Power Management IC Specifications:
- Supply Voltage Range: 3.0V to 5.5V
- Output Voltage Range: 0.7V to 4.0V (adjustable) or fixed Vout options
- Output Current: Up to 1.5A per channel
- Switching Frequency: 2.2MHz
- Package: 28-pin TQFN with exposed pad
- Operating Temperature: -40°C to +125°C
- Protections: Overvoltage, UVLO, thermal shutdown, current limiting
- Spread Spectrum: Yes, factory enabled
- Sync Input Frequency: 1.7MHz to 2.5MHz
- Input Capacitance: 2.2μF ceramic per input
- Output Capacitors: Ceramic recommended
- Power-Good outputs: Open-drain, active low, individual per channel
- Thermal Resistance: 8.3°C/W (junction-to-ambient)

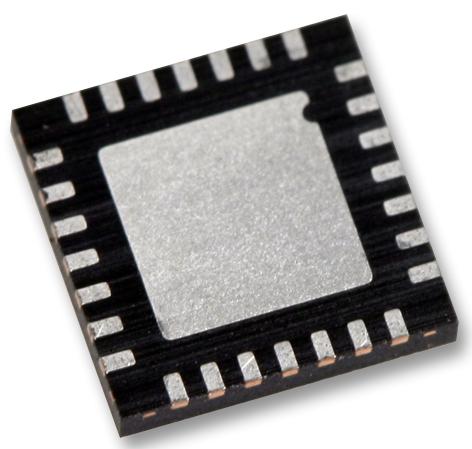

Buy the Maxim Series MAX20029 Automotive Power Management IC: MAX20029BATIAV
Purchase the Maxim MAX20029BATIAV online today and benefit from a highly efficient automotive power-management IC with four configurable step-down converters. Designed for demanding automotive and industrial applications, it offers adjustable output voltages, a 2.2MHz switching frequency, spread spectrum EMI reduction, and robust protection features. Its compact 28-pin TQFN package with exposed pad ensures excellent thermal performance and easy PCB integration. Ideal for engineers seeking reliable, high-performance power solutions for complex electronic systems, available now for quick delivery.
Get Maxim series MAX20029BATIAV today—built for automotive-grade reliability, high efficiency, and compact power management solutions.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX20029BATIAV?
You can click on the BUY or RFQ button to purchase MAX20029BATIAV from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX20029BATIAV?
You can download the MAX20029BATIAV datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX20029BATIAV?
MAXIM INTEGRATED / ANALOG DEVICES
