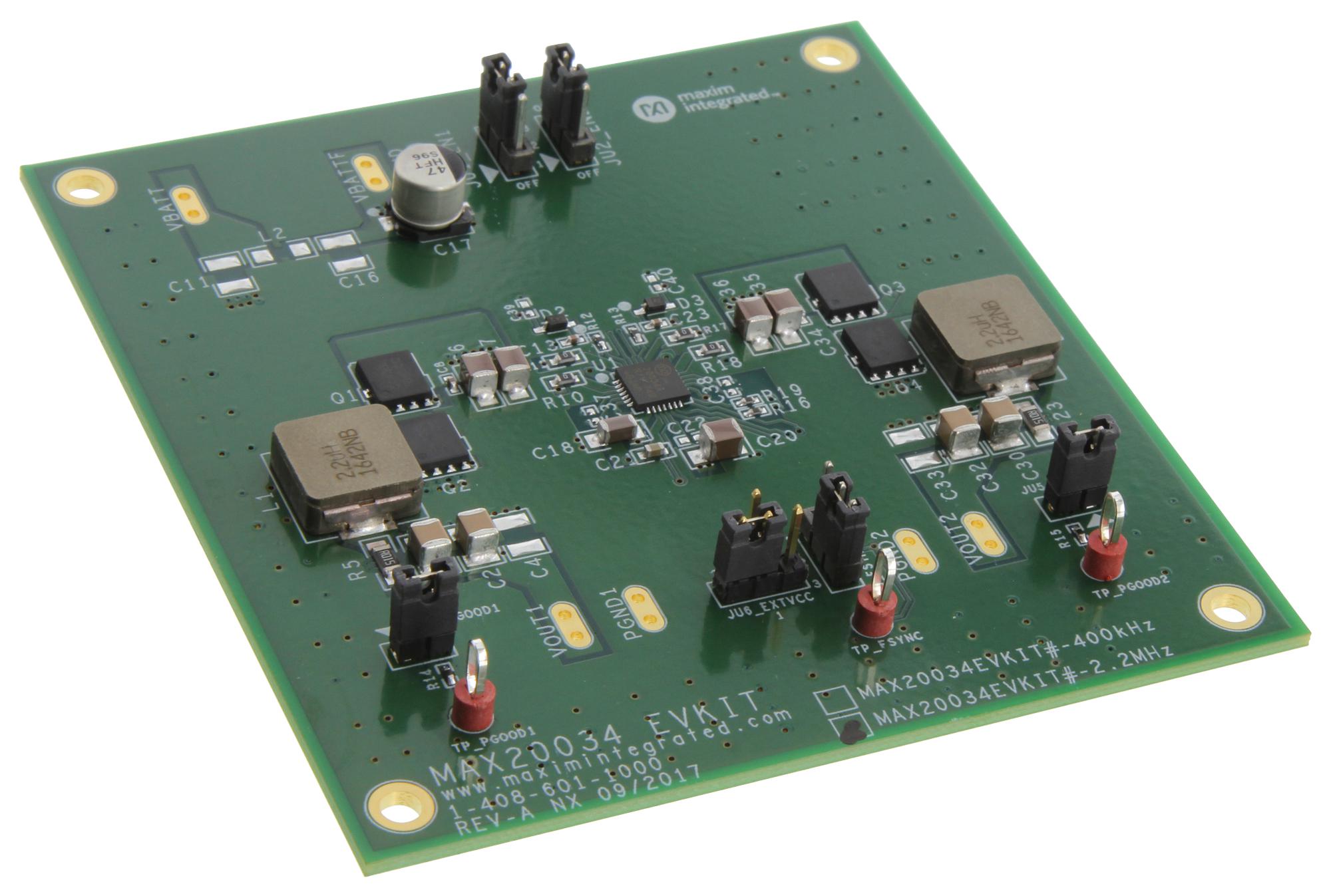

MAXIM INTEGRATED / ANALOG DEVICES MAX20034HFEVKIT Dual Power Controller Module
This evaluation kit for the MAX20034 features a switching frequency of 2.2 MHz and includes dual high-voltage step-down controllers designed to reduce board space. It meets strict OEM module power consumption and performance requirements, with a quiescent current of only 17 µA in skip mode. The device offers an output voltage accuracy of ±1.5%, supporting fixed voltages of 5.0V and 3.3V or adjustable settings via an external resistor-divider. It incorporates EMI reduction features and allows adjustable fixed-frequency operation to minimize signal interference. The kit is optimized for quick design implementation, with jumpers and test points on key nodes for straightforward evaluation.
MAXIM INTEGRATED / ANALOG DEVICES MAX20034HFEVKIT Dual Power Controller Module Specifications:
- Operating Voltage Range: 3.5V to 42V
- Switching Frequencies: 2.2MHz or 400kHz
- Output Voltages: 5.0V and 3.3V (fixed or adjustable)
- Output Voltage Accuracy: ±1.5%
- Quiescent Current: 17 µA in skip mode
- Protection Features: Overvoltage lockout, undervoltage lockout, cycle-by-cycle current limit, thermal shutdown
- Supported Temperature Range: -40°C to +125°C
- Switching Modes: Fixed frequency or skip mode, with external synchronization
- Input Compatibility: 3.5V to 42V
- Component Selections: For 2.2MHz (C10=820pF, RQR20=511kΩ, LA=2.2uH) and 400kHz (C28=1500pF, RQR20=24.9kΩ, LA=4.7pH)
Buy the Maxim MAX20034HFEVKIT – Reliable Dual Power Controller for Industrial Applications
Enhance your power conversion system with the MAX20034 evaluation kit. Designed for industrial applications, this kit features dual high-voltage synchronous controllers operating at 2.2 MHz. It provides precise output voltages of 5V and 3.3V with ±1.5% accuracy and supports a wide input range from 3.5V to 42V. The kit emphasizes high efficiency, EMI reduction, and reliable protection features like overvoltage and thermal shutdown. Quick setup with test points and jumpers makes it perfect for rapid testing and deployment in complex power solutions.
Order your Maxim MAX20034HFEVKIT dual high-voltage step-down controllers today and enhance your power management designs with dependable regulation and efficiency.
