MAXIM INTEGRATED / ANALOG DEVICES MAX20056BAUGBV High-Brightness LED Driver
The MAX20056B is a high-efficiency, 6-channel LED driver designed for automotive backlit displays and general high-brightness LED applications. It integrates a boost/SEPIC controller and six 120mA current sinks with programmable dimming, phase shifting, and spread spectrum EMI reduction. Features include load-dump protection up to 52V, low shutdown current, thermal shutdown, open/short LED detection, and a wide input voltage range of 4.5V to 42V. Its robust design makes it suitable for automotive dashboards, HUDs, and high-contrast LCD backlights, ensuring reliable performance under transients and varying temperature conditions.
MAXIM INTEGRATED / ANALOG DEVICES MAX20056BAUGBV High-Brightness LED Driver Specifications:
- Input Voltage Range: 4.5V to 42V
- Max Load Dump Voltage: 52V
- LED Sink Current per Channel: 20mA to 120mA adjustable via RISETRANGE resistor
- PWM Dimming Ratio: 10,000:1 at 200Hz
- Switching Frequency: Programmable 400kHz to 2.2MHz
- Thermal Shutdown: 165°C with 15°C hysteresis
- Overvoltage Protection: Threshold adjustable via resistor divider, ±70mV hysteresis
- Fault Detection: Open-LED, short-LED, and overtemperature, assert FLT low
- Package: TSSOP-EP 24-pin, Thermally Enhanced
- Operating Temperature: -40°C to +125°C
- Internal 5V LDO: Powers internal circuitry with up to 30mA output
- Programmable Spread Spectrum: Varies switching frequency ±6%
- Additional features: phase shifting, frequency dithering, soft-start, and LED string disable control
- Leads to high reliability in automotive transient conditions, suitable for dashboards, HUDs, and high-contrast displays.

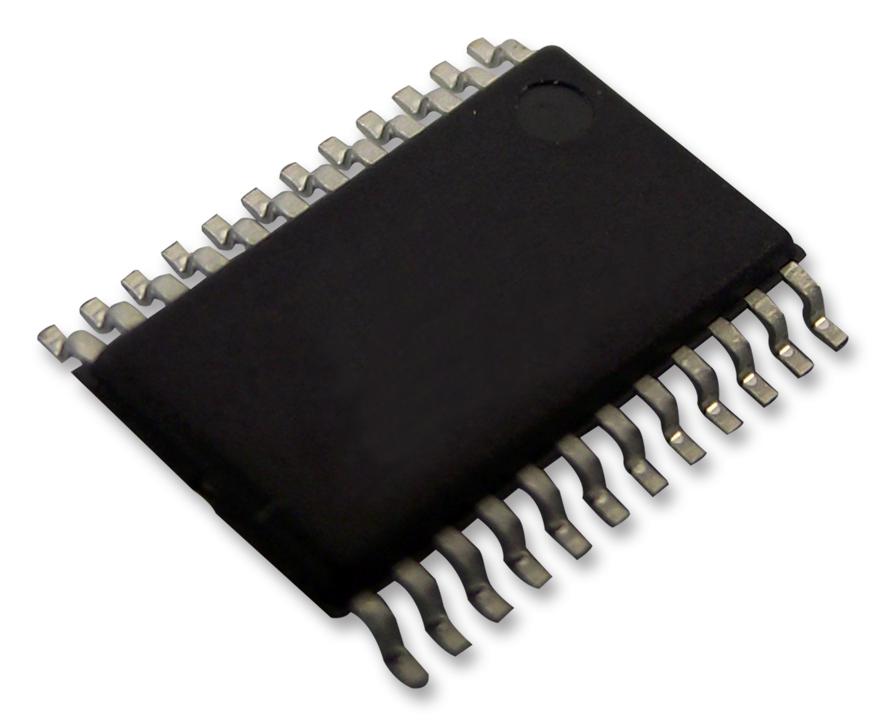

Buy the Buy MAXIM MAX20056B Part Number MAX20056BAUGB Online
