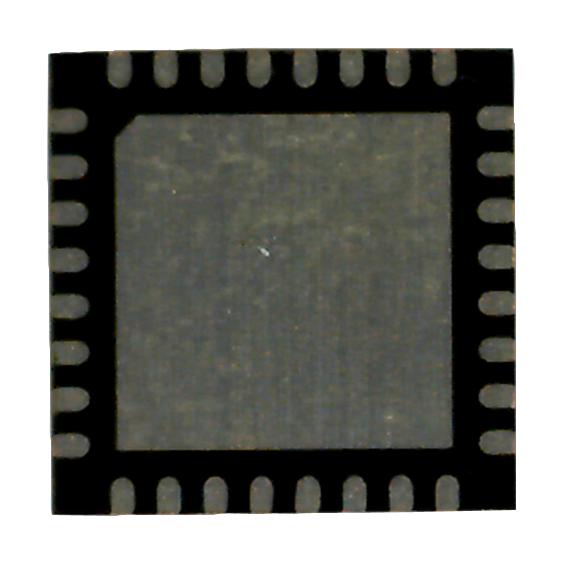

MAXIM INTEGRATED / ANALOG DEVICES MAX20092ATJVY LED Lighting Controller
The MAX20092 is a 12-switch matrix manager IC designed for automotive lighting applications, including front, tail, and matrix systems. It features individually controlled n-channel MOSFET switches rated for 10V with low on-resistance, enabling efficient LED bypass and dimming. The IC supports multiple string configurations, internal charge pump, programmable PWM dimming, and fault detection for open- and short-LEDs, enhancing reliability. It communicates via SPI, compatible with 1.8V to 5.5V logic levels, and is housed in a thermally enhanced 32-pin side-wettable TQFN package suitable for automotive environments.
MAXIM INTEGRATED / ANALOG DEVICES MAX20092ATJVY LED Lighting Controller Specifications:
- Number of switches: 12
- Switch rated voltage: 10V
- On-resistance: 0.10Ω
- Supply voltage: 1.8V to 5.5V
- Operating temperature: -40°C to +125°C
- Package: 32-pin side-wettable TQFN, 5mm x 5mm
- Features: Internal charge pump, programmable PWM frequency, open- and short-LED fault detection, thermal shutdown
- SPI interface: 7-bit address, 128 registers, supports up to 26 devices in star configuration
- Fault reports: open-LED, short-LED, open-trace, thermal warnings
- Dimming: 12-bit programmable PWM, with fade and non-fade modes
- Current sources: Separate per string, capable of powering multiple LEDs
- Protection: Overvoltage, open- and short-LED detection, thermal protection
- Application: Automotive front, tail, and matrix lighting systems
