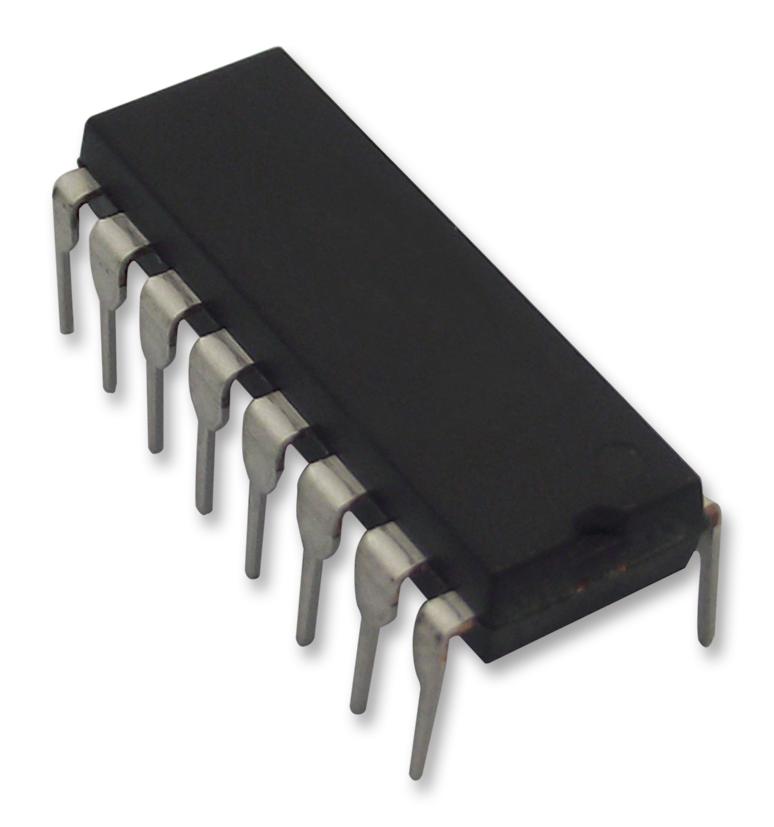

MAXIM INTEGRATED / ANALOG DEVICES MAX202ECPE RS-232 Transceiver
The MAX202E family includes high-performance RS-232 transceivers designed for harsh environments, offering +15kV ESD protection, integrated charge pumps, and various package options like DIP, SO, and SSOP. These transceivers operate from a single +5V supply, support data rates up to 120kbps, and feature low power consumption with shutdown modes. Their rugged design ensures reliable communication in portable, battery-powered, and diagnostic equipment, making them ideal for industrial and portable applications requiring robust electrostatic protection and compliance with EIA/TIA-232E and V.28 standards.
MAXIM INTEGRATED / ANALOG DEVICES MAX202ECPE RS-232 Transceiver Specifications:
- Supply Voltage: +4.5V to +5.5V
- ESD Protection: +15kV (Human Body Model)
- Data Rate: up to 120kbps
- Charge Pump: Integrated, no external capacitors needed for certain models
- Package Options: DIP, SO, SSOP
- Shutdown Current: approximately 1µA to 15µA
- Input Voltage Range: -30V to +30V
- Output Voltage Swing: +5V to +15V, load dependent
- Operating Temperature Range: 0°C to +70°C, -40°C to +85°C depending on model
- Input Thresholds: CMOS/TTL compatible
- Power Dissipation: varies by package and temperature, up to 1.414W for 24-pin DIP
- Compliance: Meets EIA/TIA-232E, V.28 specifications
Buy the Buy MAXIM RS-232 Transceiver Part Number MAX202ECPE Online
Enhance your designs with MAXIM Series MAX202ECPE RS-232 transceivers. Featuring +15kV ESD protection, integrated charge pumps, and support for data rates up to 120kbps, these rugged transceivers are perfect for portable, industrial, and diagnostic equipment. They operate from a single +5V supply, offer low shutdown current, and come in various compact packages like DIP, SO, and SSOP for flexible integration. Order now online for fast delivery and reliable performance in harsh environments.
Order your MAXIM SeriesMAX202ECPE high-protection RS-232 transceiver today and ensure reliable serial communication with integrated electrostatic discharge protection.
