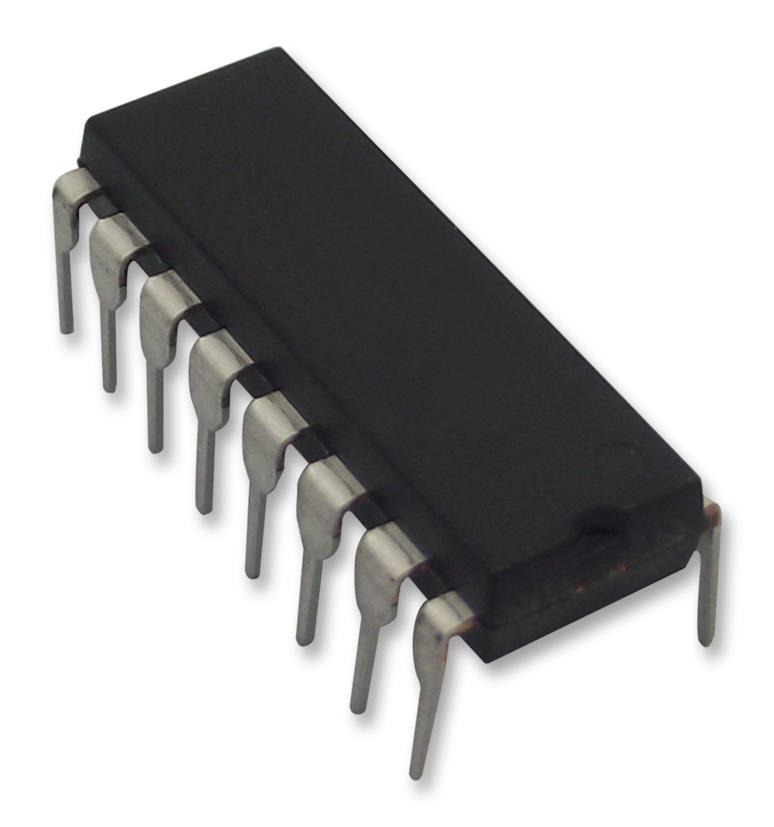

The MAX202EPE+ is a +5V, RS232 transceiver with four 0.1μF external capacitors in 16 pin DIP package. It is a RS232 and V.28 transceiver with integrated charge pump circuitry for single +5V supply operation. It consists of three sections such as charge pump voltage converters, drivers (transmitters) and receivers. The integrated charge pump circuitry eliminates the need for bipolar ±12V supply and enables single supply operation from +5V or 9V to +12V. The driver maintains the ±5V EIA/TIA-232E output signal levels at data rates in excess of 120Kbps when loaded in accordance with the EIA/TIA-232E specification.




Supply voltage range from 4.5V to 5.5V

Operating temperature range from -40°C to 85°C

Saves board space

VCC power supply current of 8mA

Two RS232 drivers and two RS232 receivers

Transition region slew rate of 5.5V/μs





Applications


Communications & Networking,

Portable Devices,

Medical
