MAXIM INTEGRATED / ANALOG DEVICES MAX17546EVKITB Power Management Converter
The MAX17546 evaluation kit is a ready-to-use, high-performance platform designed to evaluate the MAX17546 high-voltage, synchronous step-down DC-DC converter. It features a preset 5V output capable of delivering up to 5A current from an input voltage range of 6.5V to 42V. The kit offers adjustable soft-start, enable/UVLO control, external frequency synchronization, and mode selection among PWM, PFM, and DCM for optimized efficiency across load conditions. Fully assembled, it provides valuable insights into converter operation, overload protection, and thermal performance, ideal for design validation and prototyping in industrial power management applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX17546EVKITB Power Management Converter Specifications:
- Input Voltage Range: 6.5V to 42V
- Output Voltage: 5V
- Maximum Output Current: 5A
- Switching Frequency: 450kHz
- Soft-Start Time: Adjustable via external capacitor
- Enable/UVLO Control: Resistor-programmable threshold
- Operating Modes: PWM, PFM, DCM via MODE pin
- Synchronization: External clock via SYNC pin
- Protection Features: Overcurrent, overtemperature
- Board Dimensions: Proven PCB layout, fully assembled and tested

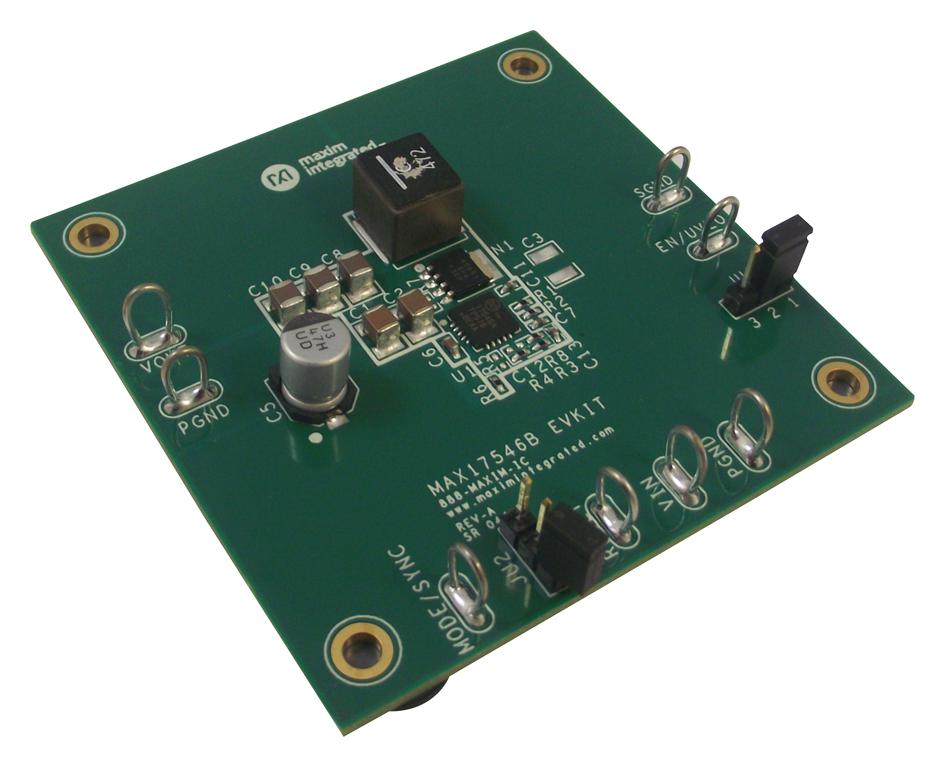

Buy the Buy MAXIM Integrated MAX17546EVKITB Evaluation Kit Online
Elevate your power supply design with the MAX17546 high-voltage, high-efficiency synchronous step-down converter evaluation kit. This fully assembled testing platform supports an input voltage range of 6.5V to 42V, providing a stable 5V output capable of delivering up to 5A. It features adjustable soft-start, mode selection among PWM, PFM, and DCM, and external frequency synchronization. Ideal for R&D, prototyping, and validation of industrial power systems, this kit offers reliable performance, comprehensive protection, and streamlined testing all in one ready-to-use package.
Buy MAXIM MAX17546EVKITB now and experience unmatched efficiency, flexible mode control, and robust protection features in your power applications.
