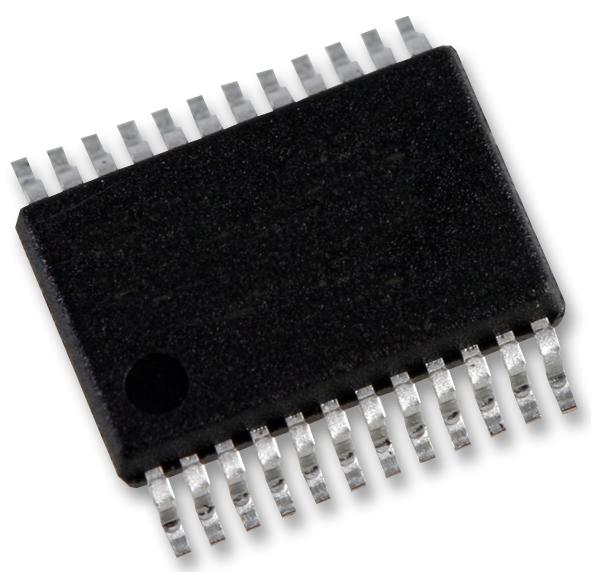

MAXIM INTEGRATED / ANALOG DEVICES MAX208CAG RS-232 Transceiver

The MAX208CAG+ is a +5V RS-232 transceiver integrated in a 24-pin SSOP package. It features four 0.1µF external capacitors and includes charge pump circuitry that enables operation from a single +5V power supply, eliminating the need for ±12V supplies. This device comprises three sections: charge pump voltage converters, drivers (transmitters), and receivers. The charge pump generates the necessary voltage levels, while the drivers and receivers handle serial data transmission and reception. Capable of data rates exceeding 120kbps, it maintains ±5V output signals as per EIA/TIA-232E standards. The transceiver operates within a voltage range of 4.5V to 5.5V, supports temperatures from 0°C to 70°C, and consumes approximately 11mA of current. It includes four drivers and four receivers suitable for various applications such as communications, networking, portable devices, and medical equipment.

View MAX208CAGDatasheet [pdf]

Buy the Buy Maxim MAX208CAG Part Number MAX208CAG Online

Purchase the Maxim MAX208CAG online today and streamline your serial communication projects. This +5V RS-232 transceiver in a compact 24-pin SSOP package offers high data rates exceeding 120kbps, integrated charge pump circuitry, and stable ±5V output signals compliant with industry standards. Its low power consumption of approximately 11mA makes it ideal for portable, networking, and medical applications. Easy to integrate with four drivers and four receivers, it eliminates the need for ±12V power supplies, providing a reliable and cost-effective solution for your communication needs.

Buy Maxim MAX208CAG now and enjoy reliable serial communication with a compact, efficient RS-232 transceiver with charge pump circuitry for versatile applications.
