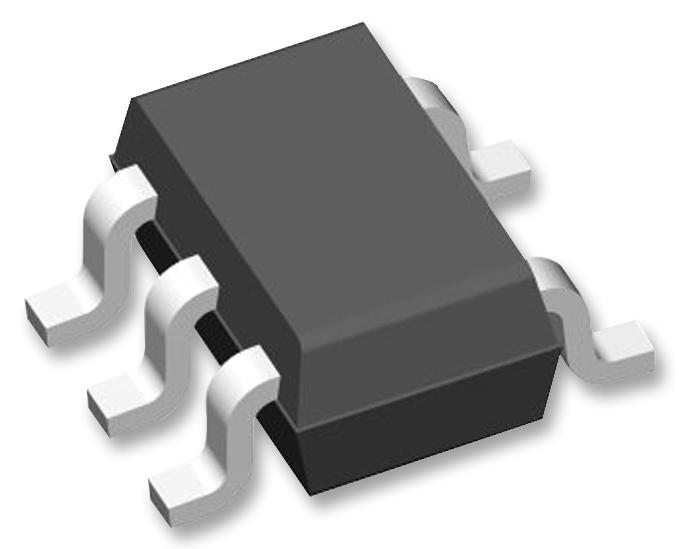

MAXIM INTEGRATED / ANALOG DEVICES MAX2204EXKT RF Power Detector
The MAX2204RF power detector operates from 450MHz to 2.5GHz, providing a highly repeatable voltage output that increases with input power. It features a detection range from -16dBm to +5dBm, with temperature compensation reducing output variation to less than +0.5dB at full power. Designed for applications like WCDMA and cdma2000, it uses external termination for low-loss resistive tapping and operates from 2.7V to 3.3V. The 5-pin SC70 package ensures compact integration with high input impedance and a simple interface for accurate power measurement in wireless communication systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX2204EXKT RF Power Detector Specifications:
- Detection Range: -16dBm to +5dBm
- Operating Frequency: 450MHz to 2.5GHz
- Supply Voltage: 2.7V to 3.3V
- Temperature Range: -40°C to +85°C
- Package: 5-pin SC70
- Max RF Input Power: +10dBm
- Output Impedance: High, allows resistive tap
- Output Voltage: Proportional to input power with low variation
- Output Series Resistor: Approx. 100kΩ
- Input Impedance: Varies across frequency, listed in detailed datasheet
- Power Dissipation: 247mW at 70°C, derates above
- Junction Temperature: Up to +150°C
- ESD Sensitivity: Yes, ESD protected
- Application: WCDMA, cdma2000, HSDPA, HSUPA
