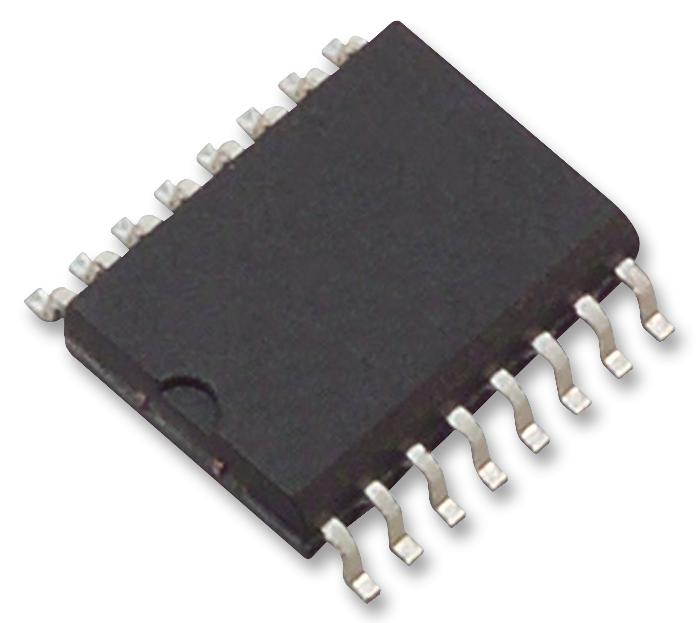

MAXIM INTEGRATED / ANALOG DEVICES MAX22530AWE Isolated ADC
The MAX22530 family includes galvanically isolated, four-channel 12-bit ADCs with integrated, self-powered DC-DC converters, enabling diagnostics even without input signals. They feature programmable threshold comparators, fast response times, and SPI interfaces with CRC options, making them suitable for high-voltage, substation, and process automation. Their isolation ratings are 3.5kVRms or 5kVpws depending on package. They support operation from -40°C to +125°C, with multiple package options ensuring reliability for industrial monitoring and control applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX22530AWE Isolated ADC Specifications:
- Input-Voltage Range: 0 to 1.8 V
- ADC Resolution: 12 Bits
- Sample Rate: 20ksps per channel
- Isolation Ratings: 3.5kVRms or 5kVpws depending on package
- Operating Temperature: -40°C to +125°C
- Power Supplies: Logic-side 1.71V to 5.5V, VppF 2.7V to 5.5V
- Power Dissipation: 1127mW (16-pin wide SOIC), 964mW (20-pin SSOP), 556.72mW (28-pin SSOP)
- Maximum Junction Temperature: Not specified
- Communication: SPI with CRC, burst and single transactions
- Fault Detection: ADC failure, SPI framing, CRC errors, data loss, and communication faults
- Package Options: 16-pin Wide SOIC, 20-pin SSOP, 28-pin SSOP
- Isolation Capacitance: ~2fF
- Creepage/Clearance: Up to 8mm depending on package
- Certifications: UL1577, CSA
Buy the Maxim MAX22530AWE – Reliable Isolated ADC for Industrial Applications
Order the Maxim MAX22530AWE online today to enhance your industrial automation systems. This four-channel 12-bit isolated ADC offers integrated power, fast sampling rate, programmable thresholds, and robust fault diagnostics. Designed to operate reliably from -40°C to +125°C and rated for high-voltage isolation up to 3.5kVRms or 5kVpws depending on the package, it simplifies system monitoring and control. Perfect for substation automation, process control, and motion systems, ensuring high accuracy, safety, and durability in demanding environments.
Get Maxim MAX22530AWE today—built for precision, high-reliability, and long-lasting durability in your industrial automation projects.
