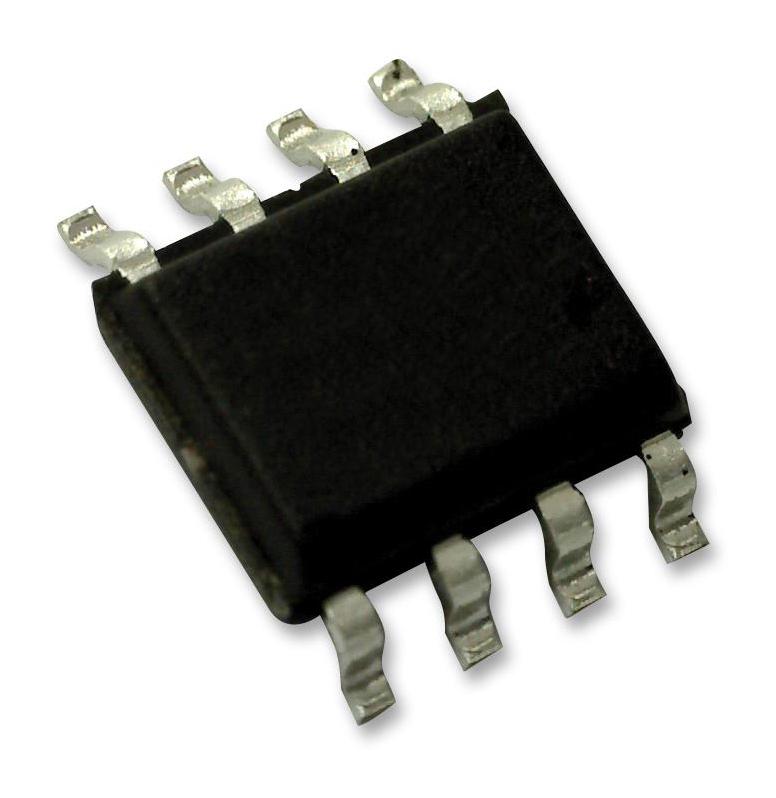

MAXIM INTEGRATED / ANALOG DEVICES MAX22701EASA High-Speed Gate Driver
The MAX22701E is a high-performance isolated gate driver designed for efficient switching of power transistors in inverter, motor control, and solar inverter applications. Featuring integrated galvanic isolation rated up to 5kVpms, ultra-high CMTI of 300kV/us, and low propagation delay matching of 5ns, it supports differential PWM inputs and active Miller clamp functions. The device operates over a wide temperature range of -40°C to +125°C and includes adjustable UVLO. Its robust design ensures high EMI immunity, minimal ringing, and reliable operation in harsh industrial environments, making it ideal for driving GaN and SiC transistors with fast switching requirements.
MAXIM INTEGRATED / ANALOG DEVICES MAX22701EASA High-Speed Gate Driver Specifications:
- Isolation Voltage: up to 5kVpms in wide SOIC package
- Propagation Delay Matching: ≤5ns
- Peak Output Current: 2.35A high-side, 1.9A low-side
- Common Mode Transient Immunity: 300kV/us (typ)
- Operating Temperature Range: -40°C to +125°C
- Vcc (Supply Voltage): 3V to 28V
- Input Types: Differential (INP/INN) or Single-Ended (IN) with enable (EN)
- UVLO Thresholds: Adjustable (MAX22702 only)
- Output Default State: Low during UVLO or thermal shutdown
- Electrical Safety Certifications: UL1577, CSA
- Package Types: Narrow SOIC (3kV), Wide SOIC (5kV)
- Soldering Temperature (Reflow): +260°C Max
- Thermal Shutdown: Threshold at +160°C, hysteresis 25°C
- Dissipation: Max 38mA in narrow SOIC, Max 57mA in wide SOIC
- Designed for GaN and SiC transistor gate driving with high switching speed
