MAXIM INTEGRATED / ANALOG DEVICES ICM7211AMIPL Four Digit LCD Driver

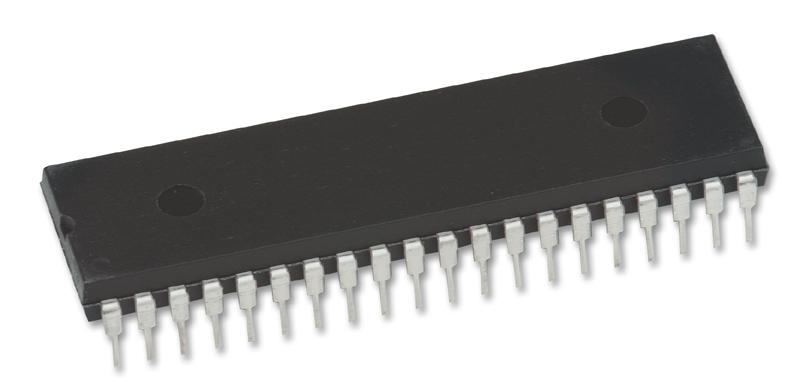

The ICM7211AMIPL+ is a four-digit display decoder and driver designed for 7-segment LCD displays, packaged in a 40-pin DIP. It integrates input data latches, a BCD to segment decoder, level translation, and timing circuits to effectively drive non-multiplexed displays. The device features a microprocessor interface with four BCD data inputs, two digit address lines, and two chip select or write inputs. Its low power consumption makes it suitable for battery-powered applications. Typical uses include intelligent instruments, digital panel displays, remote display units, and microprocessor-to-visual communication systems. It operates with a supply voltage between 3V and 6V, within an operating temperature range of -40°C to 85°C. The driver eliminates the need for external components, offers increased segment current, and consumes only about 25µW with an operating current of 10µA. It is designed for non-multiplexed LCD backlighting.

View ICM7211AMIPLDatasheet [pdf]

Buy the Maxim ICM7211AMIPL+ – Reliable LCD Display Driver for Industrial Applications

Enhance your electronic projects with the Maxim ICM7211AMIPL+ four-digit LCD driver. Designed for non-multiplexed LCDs, it offers low power consumption, integrated logic, and a microprocessor interface. Its compact design requires no external components, making it ideal for intelligent instruments, digital panel displays, remote units, and microprocessor communication. Operates within a 3V to 6V range, ensuring efficient performance even in battery-powered applications. Reliable, easy to use, and suitable for various industrial and embedded display needs.

Order your Maxim ICM7211AMIPL+ series four-digit LCD display driver today and give your projects the dependable quality they deserve, perfect for battery-powered and industrial systems.
