MAXIM INTEGRATED / ANALOG DEVICES MAX242EWN RS-232 Driver Receiver
The MAX242EWN+ is a 5V-powered multichannel RS-232 driver and receiver integrated circuit in an 18-pin WSOIC package. It supports communication standards like EIA/TIA-232E and V.28/V.24, suitable for applications without ±12V supplies. The device features a dual charge pump DC-DC converter, RS-232 drivers, receivers, and enable controls. Its circuitry allows operation from a single +5V source, with high data rates up to 200 Kbps, rapid slew rate of 12V/µs, low power shutdown mode at 5 µW, and consumes around 4mA load current. Ideal for communication, networking, portable, and medical systems, it offers low power operation, space efficiency, and separate enable controls.
MAXIM INTEGRATED / ANALOG DEVICES MAX242EWN RS-232 Driver Receiver Specifications:
- Operating Voltage: 4.5V to 5.5V
- Temperature Range: -40°C to 85°C
- Number of Drivers/Receivers: 4 drivers, 4 receivers (A-side and B-side)
- Data Rates: Up to 200 Kbps
- Slew Rate: 12V/µs
- Supply Current: Approx. 4mA no load, up to 15mA with 3kΩ load
- Shutdown Power: 5 µW, low leakage current 0.1µA at 25°C
- Package: 18-pin WSOIC
- Dual charge pump for voltage conversion, single +5V power supply
- Separate enable and shutdown controls, space-saving design
- Applications include communication systems, portable devices, medical equipment
- Supports interface translation and multi-drop RS-232 networks

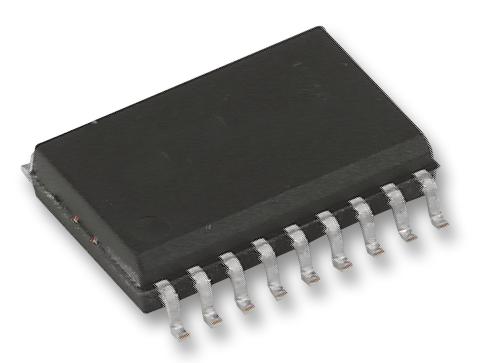

Buy the Buy MAXIM Integrated MAX242EWN+ Part Number MAX242EWN Online
Purchase the MAXIM MAX242EWN+ today for a space-efficient, reliable RS-232 communication solution. This 18-pin WSOIC device operates from a single +5V supply, supporting data rates up to 200Kbps with rapid slew rate and low power shutdown mode. Ideal for networking, portable, and medical applications, it features four drivers and four receivers, separate enable controls, and integrated charge pump circuitry eliminating the need for bipolar voltage supplies. Ensure dependable connectivity and space savings in your design with this high-performance communication interface IC.
Get MAXIM MAX242EWN+ today—built for reliable data communication and low power consumption in your portable or networking systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX242EWN?
You can click on the BUY or RFQ button to purchase MAX242EWN from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX242EWN?
You can download the MAX242EWN datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX242EWN?
MAXIM INTEGRATED / ANALOG DEVICES
