MAXIM INTEGRATED / ANALOG DEVICES MAX20340EVKIT Powerline Communication Kit
The MAX20340 evaluation kit (EV kit) is a fully assembled PCB designed to evaluate the MAX20340 bidirectional powerline communication management IC. It features USB-powered operation, flexible configuration for master/slave modes, on-board regulator, and battery-charging circuitry. The kit includes a Windows-compatible GUI software for easy testing of PLC functionalities such as different states, addresses, and communication protocols over powerlines. It demonstrates key features including dual/slave modes, adjustable communication parameters, and real-time status monitoring—ideal for developing and testing PLC solutions efficiently.
MAXIM INTEGRATED / ANALOG DEVICES MAX20340EVKIT Powerline Communication Kit Specifications:
- Power supply: USB 5V DC
- IC package: 9-bump wafer-level package (WLP), 1.358mm x 1.358mm
- Designed for bidirectional powerline communication management
- Supports master/slave modes with configurable addresses
- On-board regulator and battery-charging circuitry included
- Programmable via Windows GUI software with communication test features
- Operates with digital IC and communication interface over I2C
- Compatible with Windows 7/8/10 for software control
- Testing features include transmission, error detection, and register configuration
- PCB design supports multiple jumper configurations for specific settings

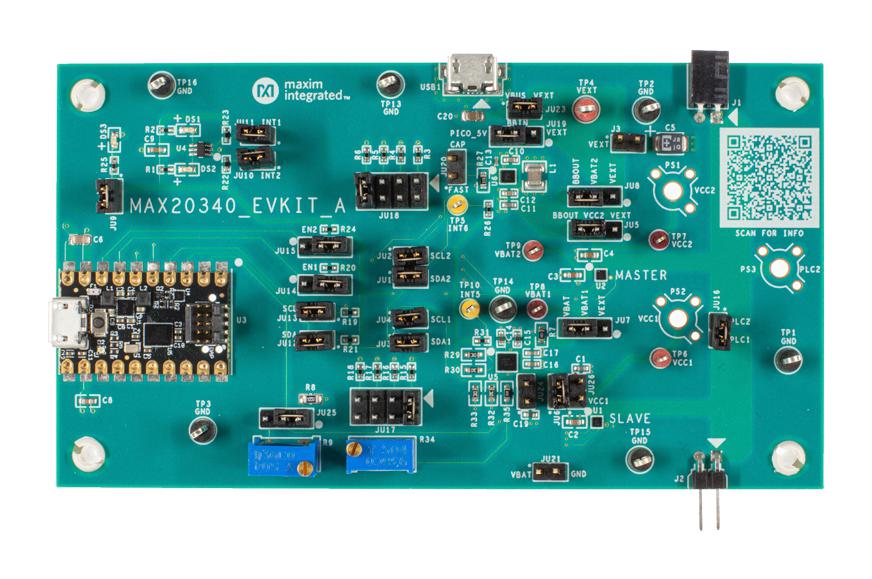

Buy the Maxim Series MAX20340 Bi-directional Power Line: EV Kit
Order the Maxim Powerline Communication Kit online today to accelerate your testing and development processes. This fully assembled and tested PCB features a high-performance IC for bidirectional powerline communication. Compatible with Windows software, it offers flexible master/slave configuration, on-board regulator, and battery charging options. Its intuitive GUI allows easy configuration, comprehensive communication testing, and real-time monitoring. Whether for industrial automation or smart home applications, this kit provides a reliable, easy-to-use platform for engineers seeking to implement robust PLC systems efficiently.
Get Maxim MAX20340 today—built for precision and long-lasting durability in PLC solutions.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX20340EVKIT?
You can click on the BUY or RFQ button to purchase MAX20340EVKIT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX20340EVKIT?
You can download the MAX20340EVKIT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX20340EVKIT?
MAXIM INTEGRATED / ANALOG DEVICES
