MAXIM INTEGRATED / ANALOG DEVICES MAX25205EQPVY Gesture Sensor
The MAX25205 is a compact optical gesture sensor designed for automotive applications, supporting swipe, rotation, proximity detection, and ambient light rejection. It combines a 60-pixel IR photodiode array, integrated LED driver, and supports I2C and SPI protocols for flexible integration. Operates from -40°C to +85°C, with low power consumption and high ambient light capability (120k Lux). Packaged in a 20-pin 4mm x 4mm QFN, it offers precise gesture recognition for central displays, door controls, occupant detection, and more—ideal for modern vehicle systems requiring robust, low-cost sensing solutions.
MAXIM INTEGRATED / ANALOG DEVICES MAX25205EQPVY Gesture Sensor Specifications:
- Package: 20-pin 4mm x 4mm QFN
- Operating Temperature: -40°C to +85°C
- Supply Voltage: 1.8V to 5.5V (Vppio), 3.3V (LDO_OUT), 3.3V (Vop)
- Ambient Light Rejection: 120k Lux operating capability
- Power Consumption: 1mA at 3.3V
- IR LED Drive Current: up to 220mA programmable via DRV[3:0]
- ADC Full Scale: 16384 counts, resolution up to 15 bits
- Protocols Supported: I2C (up to 400kHz), SPI (6MHz)
- Gesture Detection: Hand swipe, rotation, proximity
- Bonding: Surface-mount with thermal and electrical robustness
- Enables synchronization with multiple sensors to prevent LED flashing conflicts
- Includes interrupt and status registers for event monitoring
- Designed with high ambient light immunity (120k Lux) for automotive environments
- Includes internal oscillator, registers for configuration, and LED control options
- Features a digital interface with configurable timing and sampling cycles for power optimization

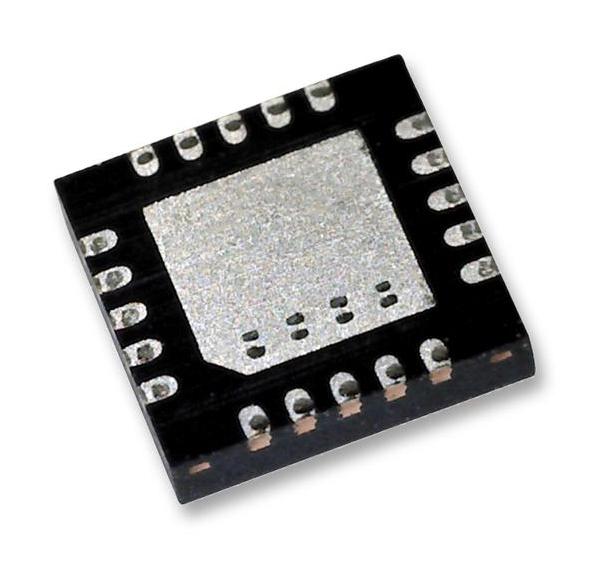

Buy the Maxim Integrated MAX25205 – Reliable Gesture Sensor for Industrial Applications
Purchase the MAX25205 gesture sensor online to enhance your automotive or industrial project with advanced proximity, swipe, and rotation detection. This compact, low-power optical sensor features high immunity to ambient light up to 120k Lux and supports both I2C and SPI communication protocols for flexible integration. Its robust design in a 4mm x 4mm QFN package makes it ideal for central display control, occupant detection, and mechanical switch replacement in vehicles. Order now for quick delivery and ensure reliable gesture recognition in challenging environments with this state-of-the-art sensor.
Get Maxim Integrated MAX25205 today—built for precise gesture detection and long-lasting durability in automotive systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX25205EQPVY?
You can click on the BUY or RFQ button to purchase MAX25205EQPVY from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX25205EQPVY?
You can download the MAX25205EQPVY datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX25205EQPVY?
MAXIM INTEGRATED / ANALOG DEVICES
