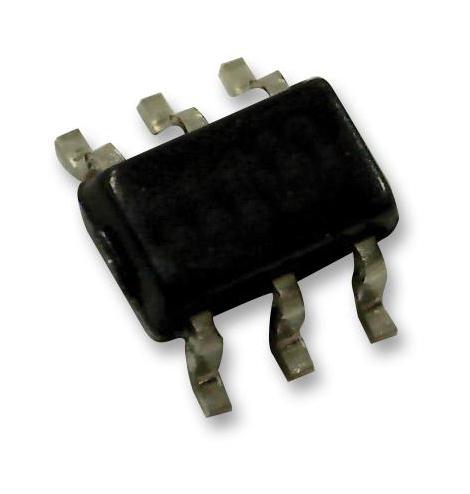

MAXIM INTEGRATED / ANALOG DEVICES MAX6070AAUT18T High-Precision Voltage Reference
The MAX6070 series offers low noise and low drift voltage references in compact 6-pin SOT23 packages, ideal for high-precision industrial and instrumentation applications. They provide a 1/f noise of only 4.8 μVp.p at 2.5V output, with a temperature drift of 6 ppm/°C, and consume just 150 μA of current. Available with options for output voltages from 1.25V to 5V, these references assure stability over extended temperature ranges, feature low dropout voltage, ripple rejection, and optional wideband noise filtering, suitable for high-resolution ADCs and current sources.
MAXIM INTEGRATED / ANALOG DEVICES MAX6070AAUT18T High-Precision Voltage Reference Specifications:
- Output Voltage: 1.25V, 1.8V, 2.048V, 2.5V, 3.0V, 3.3V, 4.096V, 5.0V
- Package: 6-pin SOT23
- Noise Voltage: 4.8 μVp.p (0.1Hz to 10Hz at 2.5V)
- Temperature Drift: 6 ppm/°C (max)
- Supply Current: 150 μA
- Line Regulation: 70-150 μV/V (typ), 125-275 μV/V (max)
- Output Accuracy: ±0.04% or ±0.08% depending on grade
- Dropout Voltage: 200 mV (typ), 250 mV (max)
- Ripple Rejection: 85 dB
- Extended Temperature Range: -40°C to +125°C
- Output Filter Option: Capacitance 0.1 μF to 10 μF
- Long-term Stability: 35 ppm over 1000 hours
Buy the Analog Devices Series High-Precision Voltage Reference: MAX6070AAUT18T
Experience exceptional accuracy and stability with the MAX6070 series voltage reference. Designed for industrial and instrumentation applications, it features low noise, low drift, and extended temperature operation. Its compact 6-pin SOT23 package ensures easy integration into your system, while the optional wideband noise filter enhances performance in sensitive circuits. With a low dropout voltage, ripple rejection, and impressive long-term stability, this voltage reference guarantees high system accuracy and reliability. Perfect for precision ADCs, DACs, and current sources, order online now for fast delivery and best pricing.
Get Analog Devices MAX6070AAUT18T today—built for precision and long-lasting durability in industrial environments.
