MAXIM INTEGRATED / ANALOG DEVICES MAX25605ATPVY Automotive LED Controller
The MAX25605 is a six-channel automotive sequential LED controller designed for efficient LED lighting and animation in vehicles. It features cascoded low Rpson n-channel MOSFETs capable of handling up to 750mA, supporting up to three series LEDs per switch with a total string voltage of up to 60V. The device includes integrated gate drivers, level shifters powered by an internal charge pump, fault detection, and optional logarithmic fade. It offers flexible programming via external resistors, supports synchronization of up to 16 devices, and operates over -40°C to +125°C in robust automotive conditions.
MAXIM INTEGRATED / ANALOG DEVICES MAX25605ATPVY Automotive LED Controller Specifications:
- Supply Voltage Range: 4.0V to 60V
- Maximum Voltage across LED string: 60V
- Current per MOSFET: Up to 750mA
- On-Resistance: Typical 0.20Ω
- Operating Temperature: -40°C to +125°C
- Charge Pump Voltage: Supports buck-boost and boost-to-battery
- Sequencing Timing: 16 ms to 475 ms based on resistor programming
- Number of Switches: 6 cascoded switches
- Fault Detection: Open LED, Short LED, Open Trace, Thermal Shutdown
- Package Options: 20-pin TQFN and TSSOP with exposed pad
- PWM Dimming Frequency: Ca. 16.384 MHz spread spectrum
- Maximum Junction Temperature: 150°C

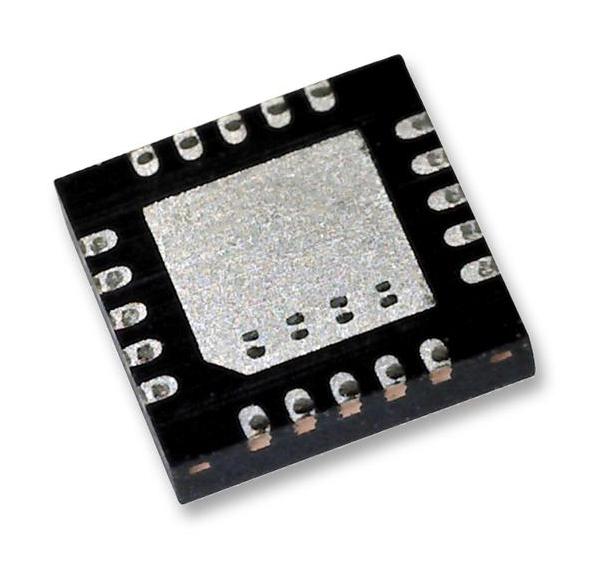

Buy the Maxim Series MAX25605 LED Controller: 6-Channel Automotive LED Sequencer
Discover the MAX25605, a robust six-channel automotive LED controller designed for vehicle lighting and animation applications. It enables seamless, programmable sequencing with fault detection and optional fade features. Ideal for turn signals, hazard lights, and decorative lighting, it supports up to 750mA per channel and operates over a wide temperature range of -40°C to +125°C. Easy resistor programming allows customization of timing and sequence, while integrated safety features enhance reliability. Purchase online today for sophisticated vehicle lighting solutions that combine flexibility, efficiency, and durability.
Order your Maxim Series MAX25605 automotive six-channel LED controller today and ensure reliable, programmable lighting with fault detection and seamless sequencing.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX25605ATPVY?
You can click on the BUY or RFQ button to purchase MAX25605ATPVY from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX25605ATPVY?
You can download the MAX25605ATPVY datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX25605ATPVY?
MAXIM INTEGRATED / ANALOG DEVICES
