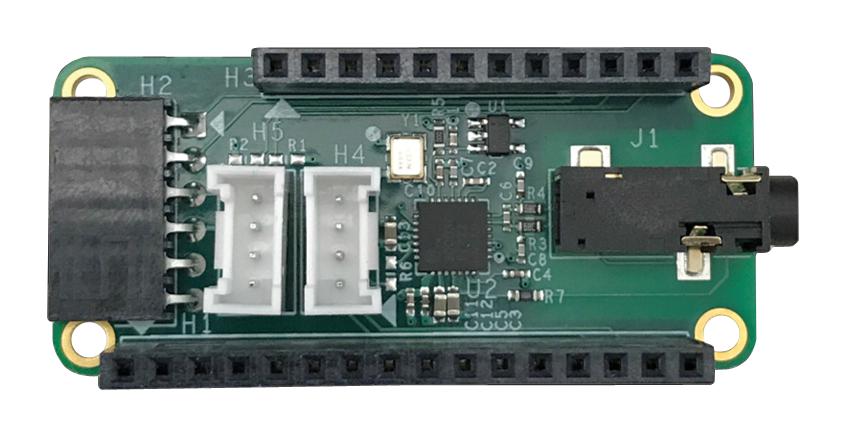

MAXIM INTEGRATED / ANALOG DEVICES MAX30003WING ECG Prototype Module
The MAX30003WING expansion board is a compact platform designed for rapid ECG prototype development using the MAX30003 biopotential analog front end. Its 0.9in by 2.0in form factor is compatible with breadboards, Feather, and Adafruit boards, featuring a 3.5mm ECG lead jack, Grove connectors for I2C and UART sensors, and a Pmod socket for additional connectivity. It includes built-in heart rate detection with interrupt capability, high-resolution data conversion with 15.5 bits effective resolution, and low power consumption for wearable health applications. Firmware samples and demo programs facilitate quick setup and testing, making it ideal for biomedical engineers and students.
MAXIM INTEGRATED / ANALOG DEVICES MAX30003WING ECG Prototype Module Specifications:
- Form Factor: 0.9in x 2.0in DIP compatible
- Compatibility: Breadboard, Feather, Adafruit wings
- Connectors: 3.5mm ECG lead jack, 2 Grove connectors, Pmod socket
- Supply Voltage: 3.3V
- Measurement Resolution: 15.5 bits effective
- Noise Level: 5μVp_p
- Power Consumption: 85μW at 1.1V
- Heart Rate Detection: Built-in with interrupt feature
- Data FIFO: 32 words
- Communication: I2C, UART, SPI via headers and connectors
- Firmware: Compatible with Mbed platform, includes demo programs for ECG and QRS streaming
- Physical Dimensions: 0.9 inches by 2.0 inches
- Includes: ECG lead jack, Grove connectors, Pmod socket, GPIO options
- Additional Features: Robust R-R detection, low power operation, extensive prototyping support
Buy the Buy MAXIM Integrated MAX30003WING Part Number MAX30003WING Online
Order the MAX30003WING expansion board today and accelerate your biomedical project development. This compact ECG platform offers high-resolution biopotential sensing, low power consumption, and multiple connectivity options including Grove and Pmod interfaces. Its 0.9in by 2.0in form factor ensures easy prototyping on breadboards and development boards. Equipped with built-in heart rate detection, interrupt features, and firmware support via Mbed, this module is ideal for engineers and students aiming to create wearable health monitoring solutions quickly and reliably, with comprehensive demo programs included.
Get MAXIM Integrated MAX30003WING today—designed for precise biomedical measurements and long-lasting durability in wearable ECG applications.
