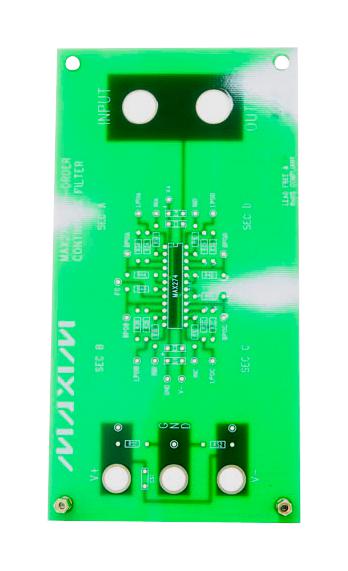

MAXIM INTEGRATED / ANALOG DEVICES MAX274EVKITDIP Active Filter Module
The MAX274 evaluation kit from Maxim Integrated Products simplifies designing 8th-order continuous-time active filters with a DIP package. It includes a filter IC, software, and PC board for rapid prototyping. The MAX274, a cascadable four 2nd-order sections active filter, supports Butterworth, Bessel, and Chebyshev responses with external resistors, ideal for audio, sonar, and avionics filtering, DAC smoothing, and vibration analysis. Center frequencies reach 150kHz, with low noise, -86dB THD, and ±1% accuracy over temperature, ensuring reliable and precise filtering in various applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX274EVKITDIP Active Filter Module Specifications:
- Center frequency range: up to 150kHz
- Filter order: up to 8th-order through four cascaded 2nd-order sections
- Response types: Butterworth, Bessel, Chebyshev
- Total harmonic distortion: typically -86dB
- Center frequency accuracy: within +1% over temperature
- Supply voltage: single +5V or dual ±5V supplies
- Input voltage range: -0.3V to +0.3V beyond supply rails
- Power dissipation: approximately 100mW
- Operating temperature: 0°C to +70°C
- Package: DIP 24-pin
- Low noise performance with a typical noise density suitable for precision filter applications
- Includes evaluation PC board and software for filter design and prototyping
Buy the Maxim Series MAX274 Active Filter: MAX274EVKITDIP
Enhance your signal processing projects with the Maxim Series MAX274 evaluation kit. This complete package includes a high-performance active filter IC, user-friendly software, and a PCB for rapid prototyping. Perfect for designing precise low- or bandpass filters up to 150kHz, it supports Butterworth, Bessel, and Chebyshev responses. Its robust design offers low distortion and high accuracy over temperature, making it ideal for audio processing, sonar, and avionics applications. Order online today to streamline your filter development and achieve reliable, professional results.
Order your Maxim Series MAX274 evaluation kit today and quickly develop high-frequency, low-noise active filters for audio, sonar, and avionics projects.
