MAXIM INTEGRATED / ANALOG DEVICES MAX3226EEAE RS-232 Transceiver
The MAX3226EEAE is a high-performance, low-voltage RS-232 transceiver with integrated +15kV ESD protection, AutoShutdown Plus, and a 1Mbps data rate. It operates from 3.0V to 5.5V power supplies, making it ideal for portable and battery-powered applications such as laptops, cellular phones, and peripherals. The device features a dual charge pump to generate the required RS-232 voltage levels, and it supports automatic power shutdown when inactive, significantly reducing power consumption for extended battery life. Its space-saving TQFN and SSOP packages facilitate easy integration into compact systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX3226EEAE RS-232 Transceiver Specifications:
- Supply Voltage Range: 3.0V to 5.5V
- Data Rate: 1Mbps
- ESD Protection: +15kV (IEC 1000-4-2), +8kV Contact Discharge
- Charge Pump: Dual with +5.5V output
- Package Types: TQFN, SSOP, TSSOP, DIP
- Power Consumption: 1µA in AutoShutdown mode
- Operating Temperature Range: -40°C to +125°C
- Transmit Voltages: Up to ±12V RS-232 levels
- Receiver Input Voltage Range: -25V to +25V
- Built-in overvoltage and electrostatic discharge protection
- Compliance: RoHS, Lead-Free

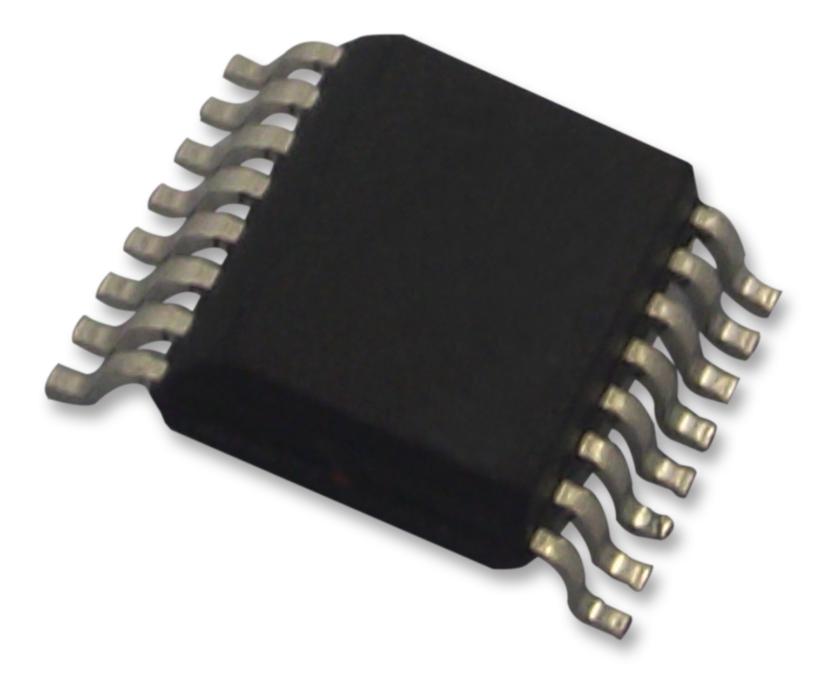

Buy the Buy Maxim RS-232 Transceiver Part Number MAX3226EEAE Online
Purchase the Maxim MAX3226EEAE online today to ensure your portable and battery-powered projects operate efficiently. This RS-232 transceiver offers +15kV ESD protection, a 1Mbps data rate, and operates from 3.0V to 5.5V supplies. Its AutoShutdown Plus feature conserves power when inactive, making it ideal for mobile and space-constrained applications such as laptops, cellular devices, and peripherals. With dual charge pumps and comprehensive electrostatic and overvoltage protection, this device guarantees reliable long-term operation in demanding environments.
Buy Maxim MAX3226EEAE now and experience unmatched reliability and performance with advanced ESD protection and low power consumption.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX3226EEAE?
You can click on the BUY or RFQ button to purchase MAX3226EEAE from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX3226EEAE?
You can download the MAX3226EEAE datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX3226EEAE?
MAXIM INTEGRATED / ANALOG DEVICES
