MAXIM INTEGRATED / ANALOG DEVICES DS1812R5TR Reset Monitor
The DS1812R-5+T&R is a low-power, 5V reset monitor in a compact 3-pin SOT-23 package, designed for reliable system power supervision. It utilizes a precision temperature-compensated voltage reference and comparator circuitry to monitor Vcc. When power falls outside tolerance, it asserts an active-high reset signal to alert the processor. After Vcc stabilizes within limits, the reset remains active for approximately 150 ms to ensure system stability. Operating with a voltage range of 0V to 5.5V, it features a trip point at about 4.62V, low operating current of 30µA, and output capacitance of 10pF, ideal for microprocessor reset applications, reducing the need for discrete components and enhancing system reliability.
MAXIM INTEGRATED / ANALOG DEVICES DS1812R5TR Reset Monitor Specifications:
- Operating Voltage Range: 0V to 5.5V
- Trip Point: 4.62V (DS1812-5 variant)
- Reset Active Time: 150 ms
- Output Voltage: approx. -0.1V at 500 pA
- Output Current: up to 10 mA at 0.4V
- Output Capacitance: 10 pF
- Supply Current: 30µA at Vcc typical
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -55°C to +125°C
- Soldering Temperature: 260°C for 10 seconds
- Package: SOT-23, 3-pin
- Active High Reset Output
- Vcc Trip Point: 4.62V
- Vcc Slew Rate: Tr=0 ns and Tr=300 Lis
- Pin Assignments: RST, Vee, GND
- Compliance: UL Listed, RoHS compliant

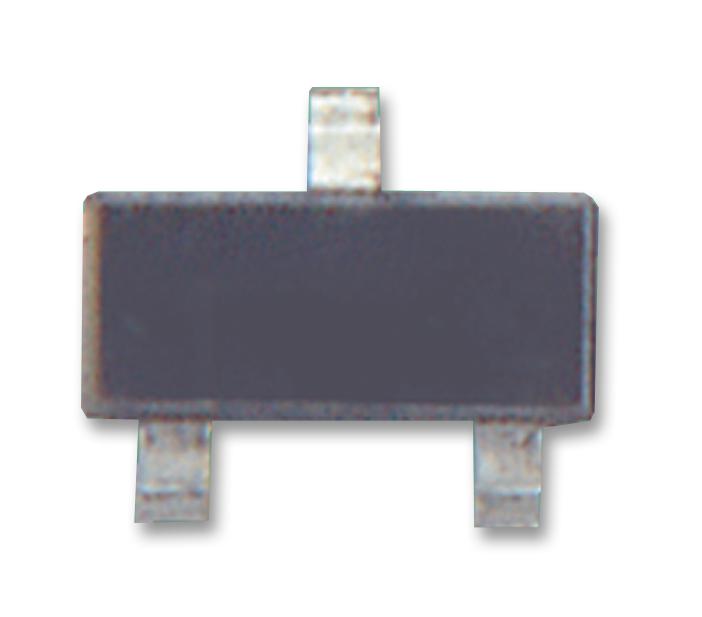

Buy the Buy Semiconductor DS1812R5TR Part Number DS1812R-5+T&R Online
