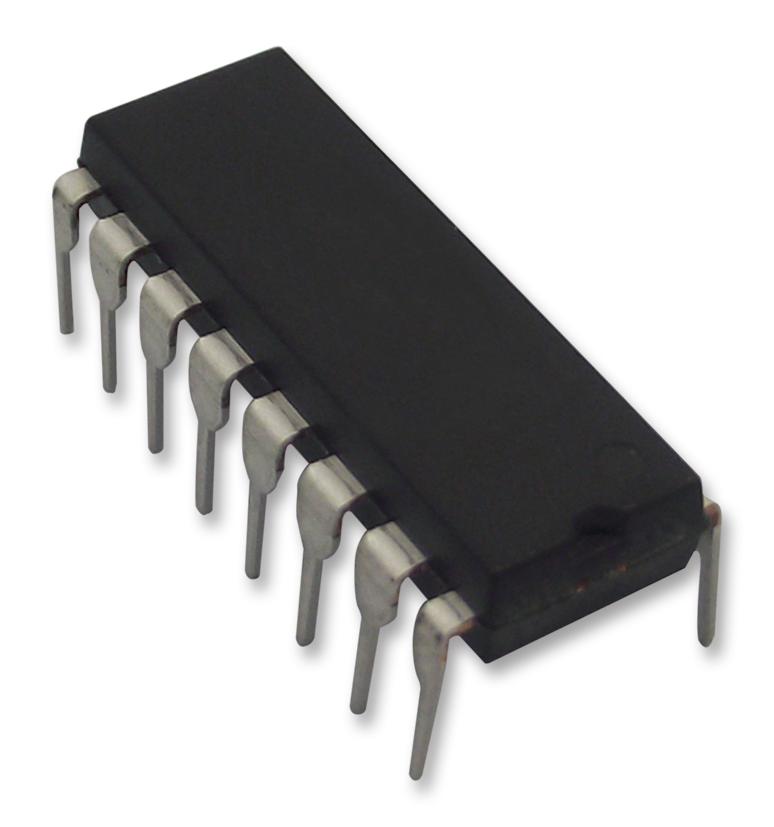

MAXIM INTEGRATED / ANALOG DEVICES MAX329CPE Differential Multiplexer
The MAX329CPE+ is a high-performance, low-leakage monolithic CMOS differential multiplexer designed in a 16-pin DIP package. It features dual 4-channel configurations optimized for minimal on and off leakages, making it suitable for high-impedance signal switching applications. The device can switch signals from high source impedances, ideal for operation with op-amps or ADCs. Adding external 40 kΩ resistors to each input enhances fault tolerance. Its low on-resistance of approximately 3.5 kΩ allows it to withstand 110V AC faults indefinitely while maintaining signal integrity, with an error less than 40 nV for normal signals. The MAX329 supports single power supplies of 10V to 30V or dual supplies from ±5V to ±18V, and performs well with unbalanced voltages such as +12V and -5V or +5V and -15V. Typical uses include control systems, data logging, aircraft HUDs, data acquisition, and signal routing. Key features include bidirectional operation, TTL and CMOS logic compatibility, operation from 0°C to 70°C, switching speeds under 1.5 μs, latch-up proof design, low power consumption of 1.9 mW with ±15V supplies, and charge injection of only 5 pC at VA = 0V.
MAXIM INTEGRATED / ANALOG DEVICES MAX329CPE Differential Multiplexer Specifications:
- Operating Temperature Range: 0°C to 70°C
- Power Supply Range: 10V to 30V single, ±5V to ±18V dual
- On-Resistance: approximately 3.5 kΩ
- Leakage Current: less than 1pA at room temperature
- Switching Speed: less than 1.5 μs
- Charge Injection: 5 pC at VA=0V
- Power Consumption: 1.9 mW with ±15V supplies
- Bidirectional operation, TTL and CMOS compatible
- Supports fault-tolerant operation with external 40 kΩ resistors
- Includes latch-up proof construction
- Ideal for high-impedance signal switching such as op-amps and ADCs
- Designed for control, data logging, aircraft HUDs, and signal routing
- Contains 16 pins in DIP package, easy to implement in tight space
- Operates reliably under high-obstacle voltage conditions without external diodes
Buy the Maxim Series MAX329 Differential Multiplexer: MAX329CPE+
Enhance your signal routing and high-impedance switching with the Maxim Series MAX329 differential multiplexer. Engineered for low leakage, high reliability, and fault-tolerant operation, it is perfect for control systems, data logging, and aerospace applications. This device features dual 4-channel configurations, low on-resistance, and fast switching speeds under 1.5 microseconds. Its flexible power supply range supports single or dual voltages from 10V to 30V or ±5V to ±18V, ensuring compatibility with various systems. Built with a latch-up proof design, it guarantees reliable, noise-free operation with minimal charge injection of 5 pC, providing precision and stability in sensitive measurement environments. Order online now and improve your project's signal integrity and fault resilience efficiently.
Order your Maxim Series MAX329CPE+ differential multiplexer today and give your high-impedance signal switching applications the dependable quality they deserve.
