MAXIM INTEGRATED / ANALOG DEVICES MAX4908ETDT audio multiplexer

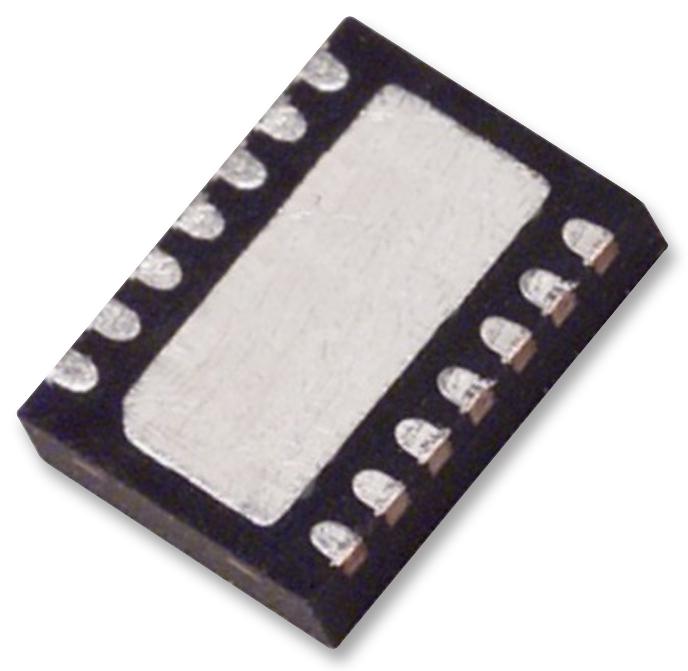

The MAX4908ETD+T is a dual 3:1 clickless audio multiplexer with negative-signal handling in a compact 14-pin TDFN package. It supports signals down to VCC minus 5.5V without distortion, featuring low on-resistance around 0.38 ohms, low supply current, and single-supply operation from 1.8V to 5.5V. It includes shunt resistors on all input terminals to suppress click-and-pop noises through automatic capacitance discharge and employs break-before-make switching for smooth transitions. Controlled by two digital inputs accepting up to +5.5V independently of supply, ideal for portable audio devices operating reliably from -40°C to +85°C with excellent performance metrics including low THD, high PSRR, and minimal crosstalk.
MAXIM INTEGRATED / ANALOG DEVICES MAX4908ETDT audio multiplexer Specifications:
- Package: 14-pin TDFN
- Supply Voltage: 1.8V to 5.5V
- On-Resistance: approximately 0.38 ohms (typ)
- On-Resistance Flatness: max 0.35 ohms
- Channel-to-Channel Matching: 0.10 ohms (max)
- Off-Leakage Current: ±50nA
- Input Control Voltage: up to +5.5V
- Total Harmonic Distortion: 0.02%
- Off-Isolation: -80dB at 20kHz
- Crosstalk: -70dB at 20kHz
- Operating Temperature Range: -40°C to +85°C
- Break-before-make switching with minimal pop noise
- Supports signals as low as VCC - 5.5V without distortion
- Includes shunt resistors on all input terminals to reduce click-and-pop sounds
Buy the Buy Maxim MAX4908ETD+T Dual 3:1 Clickless Audio Multiplexer Online
Purchase the Maxim MAX4908ETD+T dual 3:1 clickless audio multiplexer online now. Designed for portable audio systems, it offers low on-resistance, excellent signal integrity, and click-and-pop reduction. Its negative-signal handling allows signals approaching ground without distortion, ideal for cell phones, MP3 players, and handheld devices. With a wide operating voltage from 1.8V to 5.5V and temperature range from -40°C to +85°C, it ensures reliable performance. Shop now for fast delivery and ensure spotless audio switching in your project.
Order your Maxim MAX4908ETD+T dual 3:1 clickless audio multiplexer today and enjoy reliable, distortion-free audio switching for portable devices.
