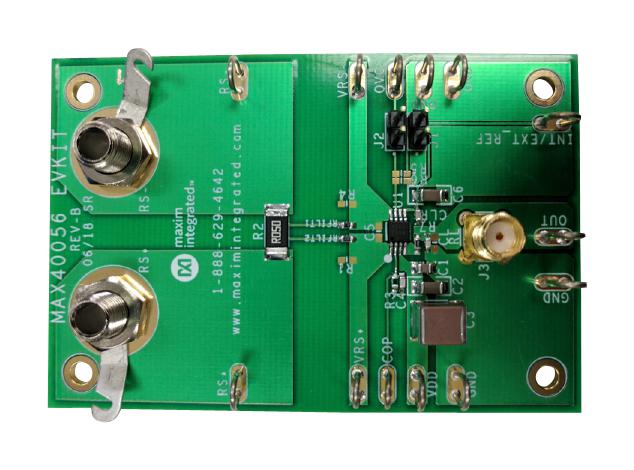

MAXIM INTEGRATED / ANALOG DEVICES MAX40056EVKIT Current Sense Amplifier
The MAX40056 evaluation kit provides a robust platform to assess the high-precision, high-voltage bidirectional current sense amplifier suitable for PWM applications like servo motor control and robotics. It features an internal 1.5V reference, an extensive temperature range from -40°C to +125°C, and proven PCB layout with fully assembled, tested hardware. The kit's design supports different gain options and overcurrent fault detection, making it ideal for 48V or less BLDC motors, solenoid drives, and industrial automation systems. Easy-to-follow testing procedures ensure accurate evaluation of device performance in various PWM and current sensing scenarios.
MAXIM INTEGRATED / ANALOG DEVICES MAX40056EVKIT Current Sense Amplifier Specifications:
- Device: High-precision, high-voltage bidirectional current sense amplifier
- Input Common Mode Range: -0.3V to +65V
- Reference Voltage: Internal 1.5V or external Vref input
- Temperature Range: -40°C to +125°C
- Gain Options: 50V/V, 20V/V, 10V/V (depending on device variant)
- Overcurrent Fault Detection: Window comparator with configurable threshold
- Power Supply: +3.3V and 0-60V for load and sense input
- PCB Layout: Proven design for accuracy and noise rejection
- Evaluation Focus: PWM applications such as servo motors, robotics, and industrial control
- Package: 8-pin MAX package, compatible with multiple gain variants
Buy the Buy MAXIM Integrated MAX40056 Part Number MAX40056EVKIT Online
Explore the MAXIM Integrated MAX40056 high-precision bidirectional current sensing amplifier evaluation kit. Designed for PWM applications, it offers accurate load current monitoring, fault detection, and a proven PCB layout. The kit features an internal 1.5V reference, wide temperature operation from -40°C to +125°C, and supports multiple gain options to suit various motor control and industrial automation needs. Easy setup and testing procedures enable quick assessment of device performance in robotics, servo drives, and other PWM-based systems. Buy online today for reliable, industrial-grade current measurement solutions.
Get MAXIM Integrated MAX40056EVKIT today—built for precision and long-lasting durability in current sensing and PWM motor control applications.
