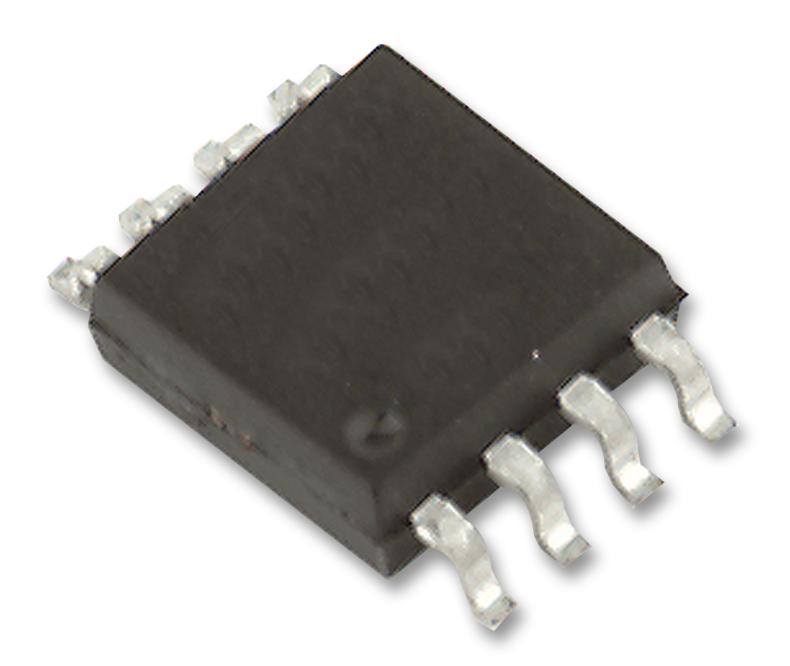

MAXIM INTEGRATED / ANALOG DEVICES MAX44250AUA Precision Low-Noise Op Amp
The MAX44250AUA+ is a 20V, ultra-precise, low-noise operational amplifier in an 8-pin μMAX package, offering near-zero DC offset, minimal drift, and high stability. Its patented auto-correlating zeroing techniques continuously measure and compensate for input offset, reducing 1/f noise and ensuring consistent accuracy over temperature and time. Featuring rail-to-rail output, it supports single and dual supply voltages from 2.7V to 20V, with low consumption of 1.15mA per channel. It provides an input-referred voltage noise of 5.9nV/√Hz, a fast 400ns settling time, and an 10MHz gain-bandwidth product. Its high precision makes it ideal for interfacing pressure sensors, strain gauges, and medical instrumentation requiring ultra-low noise and DC accuracy, especially in sensor conditioning and instrumentation applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX44250AUA Precision Low-Noise Op Amp Specifications:
- Supply Voltage Range: ±1.35V to ±10V or 2.7V to 20V
- Input Offset Voltage: Max 9μV at room temperature
- Input Voltage Noise: 123nVP-P in 0.1Hz to 10Hz
- Input-Referred Voltage Noise: 5.9nV/√Hz
- Gain Bandwidth Product: 10MHz
- Slew Rate: 8V/μs at 10V supply
- Settling Time: 400ns at 10V, 200ns at 3.3V
- Operating Temperature Range: -40°C to 125°C
- Power Consumption: 1.15mA per channel
- Rail-to-Rail Output
- Auto-zeroing zeroing techniques for offset and 1/f noise reduction
- Package Type: 8-pin μMAX
- Radio Frequency Interference (RFI) EMI filter integrated
- Designed for ultra-low noise, DC precision applications
Buy the Buy Maxim MAX44250AUA+ Part Number MAX44250AUA+ Online
Order the Maxim MAX44250AUA+ online now and experience unmatched precision, ultra-low noise, and stability ideal for medical, sensor, and instrumentation applications. This high-accuracy operational amplifier supports single and dual power supplies from 2.7V to 20V, offering advanced auto-zeroing technology that constantly measures and compensates offset, ensuring minimal drift and 1/f noise. Its rail-to-rail output provides maximum dynamic range, with a fast 400ns settling time suitable for high-speed data acquisition, making it an essential component for demanding measurement systems and sensor interfaces.
Get Maxim MAX44250AUA+ today—built for ultra-low noise and high accuracy in sensing and instrumentation.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX44250AUA?
You can click on the BUY or RFQ button to purchase MAX44250AUA from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX44250AUA?
You can download the MAX44250AUA datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX44250AUA?
MAXIM INTEGRATED / ANALOG DEVICES
