MAXIM INTEGRATED / ANALOG DEVICES MAX3223EETP RS-232 Transceiver
The MAX3223EETP+ is a 3V powered RS-232 transceiver with high electrostatic discharge (ESD) protection up to ±15KV. It features automatic shutdown/wakeup capabilities, allowing it to reduce power consumption when the RS-232 cable is disconnected or the connected device's transmitters are off. The device operates within a temperature range of -40°C to 85°C and includes two drivers and two receivers in a 20-pin TQFN package. It can achieve data rates of up to 250 kbps while maintaining RS-232 signal levels and incorporates a low dropout transmitter output stage powered by a dual charge pump that requires only four small 0.1 µF capacitors, supporting operation from a +3.3V supply. Designed for high-speed serial communication, industrial applications, and portable devices, it offers robust ESD protection, reliable performance, and low power consumption in shutdown mode.
MAXIM INTEGRATED / ANALOG DEVICES MAX3223EETP RS-232 Transceiver Specifications:
- Supply Voltage: 3.0V to 3.6V
- ESD Protection: ±15KV Human Body Model
- Data Rate: Up to 250 kbps
- Package: 20-pin TQFN
- Operating Temperature Range: -40°C to 85°C
- Power Consumption: Very low in shutdown mode (~1pA)
- Charge Pump Capacitors: Four 0.1uF capacitors required for dual charge pump
- Power Dissipation: 754.7mW (at Ta=+70°C, 46-pin TSSOP)
- Transmitters: 2 inverting level translators, guaranteed to supply +5V
- Receivers: Convert RS-232 signals to CMOS levels, with high-impedance outputs in shutdown
- Supports operation from Vcc: +3.3V typical
- Built to meet IEC 1000-4-2 ESD standards
- Reliably protects against static discharge during handling and operation
- Suitable for high-speed serial communication, industrial machinery, portable, and battery-powered equipment

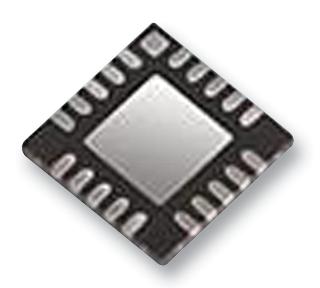

Buy the Buy MAXIM MAX3223EETP RS-232 Transceiver Part Number MAX3223EETP Online
Order the MAXIM MAX3223EETP RS-232 transceiver online now to enjoy state-of-the-art electrostatic discharge protection, high data rate performance of up to 250 kbps, and reliable operation from a +3.3V supply. This compact, 20-pin TQFN package integrates dual drivers and receivers, ideal for portable, battery-powered, and industrial communication devices. Featuring automatic shutdown/wakeup, it greatly reduces power consumption when disconnected or inactive, and complies with IEC 1000-4-2 standards. Perfect for high-speed data transmission, robust and easy to integrate into your communication system.
Get MAXIM MAX3223EETP today—built for high-speed serial communication, low power consumption, and robust ESD protection in portable and industrial systems.
