MAXIM INTEGRATED / ANALOG DEVICES MAX44265EWTT Low-Power Rail-to-Rail Op Amp
The MAX44265 is a rail-to-rail, low-power operational amplifier in a compact 6-bump WLP package, ideal for battery-powered applications requiring high speed and low bias current. It features a 200kHz gain bandwidth, ultra-low input bias current of 1pA, and a supply current of only 4μA. The device operates from a single supply voltage range of 1.8V to 5.5V, with a shutdown mode that reduces current to 1nA and places outputs in high impedance. Its rail-to-rail inputs and outputs enable close-to-supply voltage operation, suitable for medical, portable, and communication devices.
MAXIM INTEGRATED / ANALOG DEVICES MAX44265EWTT Low-Power Rail-to-Rail Op Amp Specifications:
- Supply Voltage Range: 1.8V to 5.5V
- Supply Current: 4μA (normal mode), 1nA (shutdown)
- Input Bias Current: 1pA (typ)
- Gain Bandwidth Product: 200kHz
- Output Voltage Swing: within 5mV of rails with 100kΩ load
- Input Common-Mode Voltage Range: extends 100mV beyond supply rails

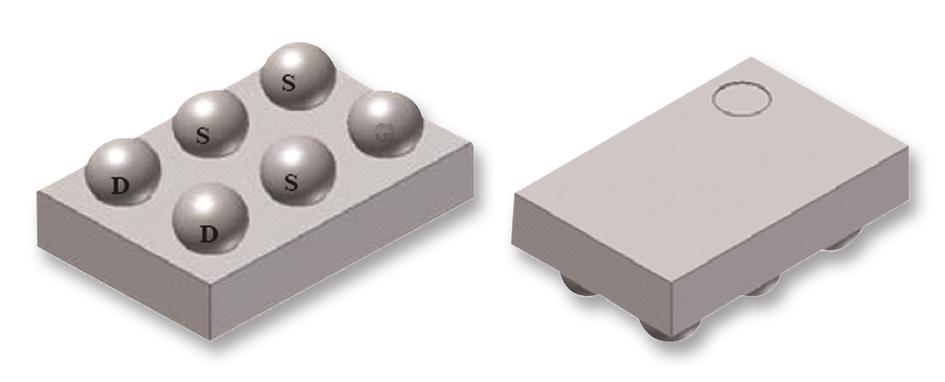

- Package: 6-bump WLP, 0.9mm x 1.3mm
- Operating Temperature Range: -40°C to +85°C
- Slew Rate: 0.1 V/μs
- Capacitive Load Drive Capability: up to 30pF, 250pF with gain of 10V/V
- Power-Up Settling Time: approximately 5μs
- Shutdown Mode Delay: 2μs (enter), 30μs (exit)
Buy the Buy MAXIM MAX44265EWTT Part Number MAX44265 Online
Purchase the MAX44265 in a compact 6-bump WLP package online today. This high-speed, low-bias current op amp is perfect for portable medical, communication, and data acquisition systems. Its rail-to-rail inputs and outputs ensure it can operate close to supply voltages, with a gain bandwidth of 200kHz. Featuring ultra-low 1pA input bias current and only 4μA supply current, it conserves power while maintaining high performance. Order now for reliable low-voltage precision and energy-efficient solutions.
Order your MAXIM MAX44265EWTT ultra-low power op amp today and enjoy dependable performance for your battery-powered projects with high-precision needs.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX44265EWTT?
You can click on the BUY or RFQ button to purchase MAX44265EWTT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX44265EWTT?
You can download the MAX44265EWTT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX44265EWTT?
MAXIM INTEGRATED / ANALOG DEVICES
