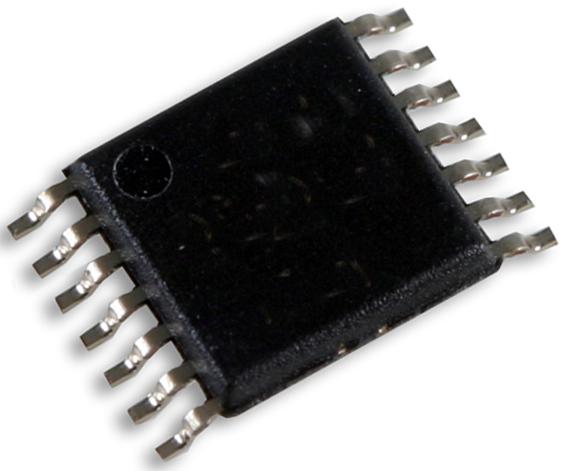

MAXIM INTEGRATED / ANALOG DEVICES MAX4454EUD Quad Operational Amplifier
The MAX4454EUD is a low-cost, single-supply quad operational amplifier designed for wide bandwidth and low power consumption. Operating from a single voltage of +2.7V to +5.25V, it features rail-to-rail outputs, a bandwidth of 200MHz (-3dB), and consumes only 620μA per amplifier. The device offers high-speed performance with a slew rate of 95V/μs, fast rise and fall times of 20ns, and is unity gain stable. Suitable for low voltage applications like cell phones and keyless entry systems, it includes input offset voltage of 400μV, bias current of 0.8μA, and operates from -40°C to 85°C in a 14-pin TSSOP package.
MAXIM INTEGRATED / ANALOG DEVICES MAX4454EUD Quad Operational Amplifier Specifications:
- Supply Voltage: +2.7V to +5.25V
- Bandwidth: 200MHz (-3dB)
- Gain Flatness: 30MHz at 0.1dB
- Slew Rate: 95V/μs
- Input Offset Voltage: 400μV
- Input Bias Current: 0.8μA
- Input Offset Current: 0.1μA
- Output Swing: Within 180mV of rails with 1kΩ load
- Operating Temperature Range: -40°C to 85°C
- Package: 14-pin TSSOP
Buy the Maxim MAX4454EUD – Reliable High-Speed Quad Op Amps for Industrial Applications
Purchase the Maxim MAX4454EUD online today and enhance your electronic designs with a low-cost, high-speed quad op amp. Operating from a single +2.7V to +5.25V supply, it features 200MHz bandwidth, rail-to-rail outputs, and ultra-low power consumption of just 620μA per amplifier. Its fast slew rate of 95V/μs and 20ns rise/fall times make it ideal for portable devices, signal processing, and RF applications. Enhance your project’s performance with this reliable, space-saving 14-pin TSSOP package available online now.
Get Maxim MAX4454EUD today—built for precision and long-lasting durability in portable and high-frequency signal systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX4454EUD?
You can click on the BUY or RFQ button to purchase MAX4454EUD from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX4454EUD?
You can download the MAX4454EUD datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX4454EUD?
MAXIM INTEGRATED / ANALOG DEVICES
