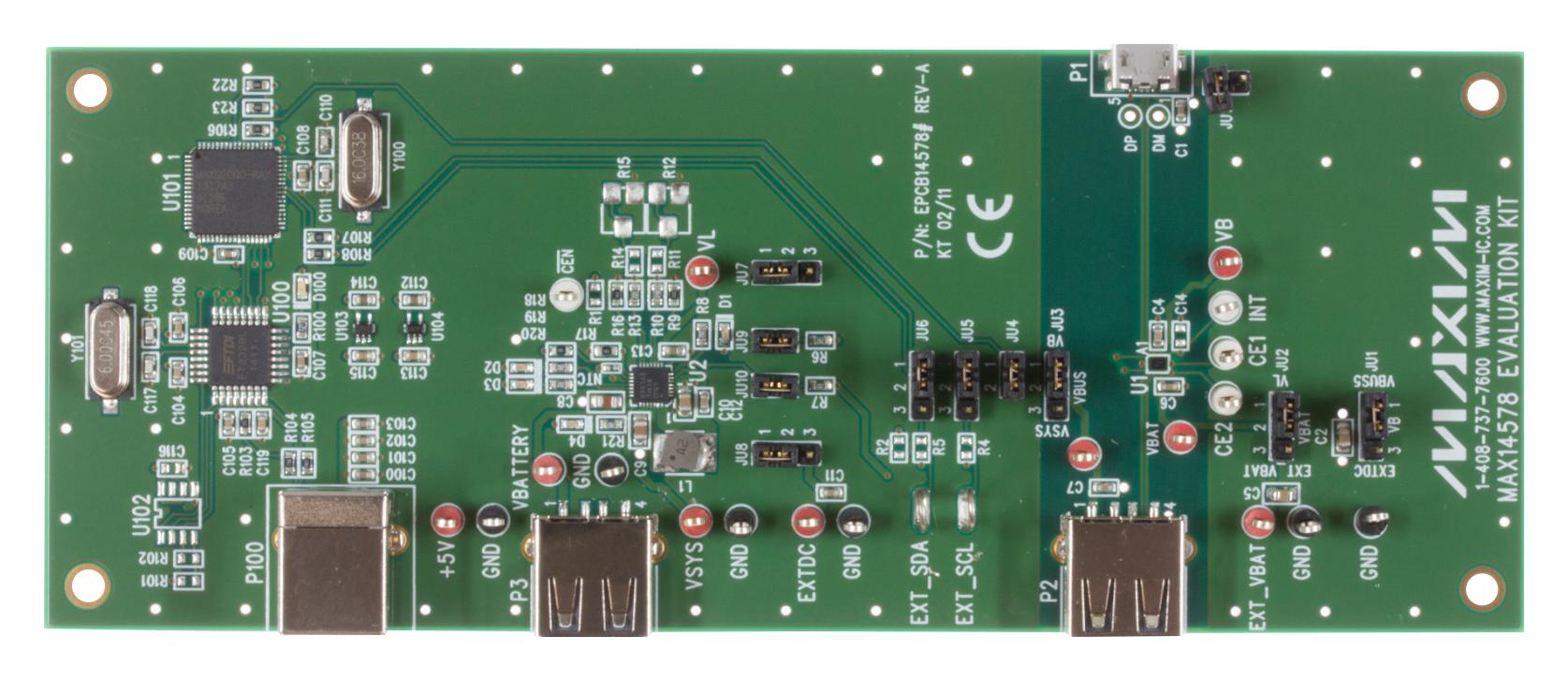

The MAX14578EVKIT# from Maxim Integrated Products is a MAX14578 evaluation kit (EV kit). It provides a proven design to evaluate the MAX14578 USB battery charger detector in a 12-bump wafer-level package (WLP). The IC features charger detection compliant to USB battery charging revision 1.1, dedicated charger detection, apple charger detection, China YD/T1591-compliant charger detection and USB pass-through communication. The kit has various power options to separate the charging current from the system current and is self-powered through USB but needs external power to demonstrate charging. It features the MAX8903A 1-cell lithium-ion (Li+) DC-DC USB charger for interfacing with the MAX14578 in an application setting.




Windows XP-, Windows Vista- and Windows 7-compatible software

GUI simplifies learning the IC’s operation

Includes MAX8903A USB charger for application testing

Can be USB powered or externally powered for greater charging current

Proven PCB layout

Fully assembled and tested

Cell Phones; DSC and Camcorder; e-Book Readers; Media Players; MID (Mobile Internet Device)
