MAXIM INTEGRATED / ANALOG DEVICES MAX4515CUKT Low-Voltage Analog Switch
The MAX4515CUK+T is a low-voltage, low on-resistance SPST CMOS analog switch housed in a 5-pin SOT-23 package. Designed for single-supply operation between +2V and +12V, it can handle rail-to-rail analog signals. The switch exhibits minimal off leakage current of 1nA at +25°C and up to 20nA at +85°C. All digital inputs have logic thresholds between 0.8V and 2.4V, ensuring compatibility with TTL and CMOS logic levels at a +5V supply. Suitable for battery-powered devices, audio and video signal routing, low-voltage data acquisition systems, and PCMCIA cards, it features a supply current of 1μA at room temperature, operates within 0°C to 70°C, and has a normally closed configuration. The device offers low charge injection (4pC at +25°C with a 3V supply), fast switching speeds (tON = 150ns, tOFF = 100ns), and a maximum on-resistance of 50Ω at +25°C with a 3V supply. It also provides low on-resistance flatness (3Ω at +25°C with 5V supply) and high off isolation (-90dB at 100kHz with 5V supply). The switch features break-before-make operation and is ideal for signal processing, communications, networking, consumer electronics, and portable device applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX4515CUKT Low-Voltage Analog Switch Specifications:
- Supply Voltage Range: +2V to +12V
- On-Resistance: 50Ω at +25°C with 3V supply
- On-Resistance Flatness: 3Ω at +25°C with 5V supply
- Leakage Current: 1nA at +25°C, 20nA at +85°C
- Digital Input Threshold: 0.8V to 2.4V
- Charge Injection: 4pC at +25°C
- Switching Times: tON = 150ns, tOFF = 100ns
- Off Isolation: -90dB at 100kHz
- Operating Temperature: 0°C to 70°C
- Configuration: Normally Closed (NC)
- Package: SOT-23
- Application: Battery-powered devices, audio/video routing, low-voltage data systems, mobile electronics.

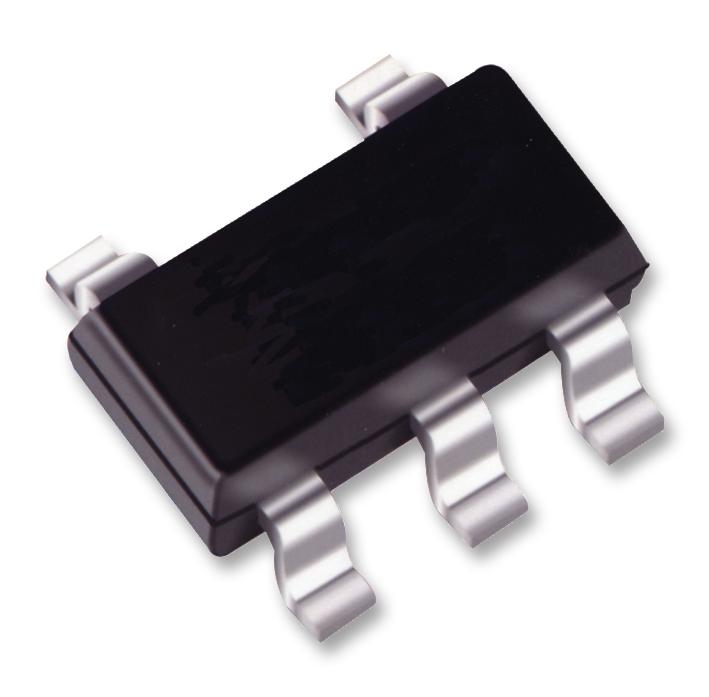

Buy the Maxim Series Low-Voltage CMOS Switch: MAX4515CUK
Purchase the Maxim MAX4515CUK online now for excellent low-voltage switching performance, minimal leakage, and fast response times. Ideal for battery-operated systems, audio and video signal routing, compact design with 5-pin SOT-23 package, and high off-isolation makes it perfect for portable electronics, communication devices, and data acquisition systems. Experience reliable, durable, and efficient switching with this specially designed CMOS analog switch, ensuring seamless signal integrity and compatibility across various consumer and industrial applications, all available for quick online purchase.
Get Maxim MAX4515CUK today—built for low-voltage operation and reliable signal switching in portable electronics.
