MAXIM INTEGRATED / ANALOG DEVICES MAX25430AATLFV Automotive USB-PD Controller
The MAX25430 is an automotive-grade USB-PD buck-boost controller capable of driving up to 5.0A, supporting USB Type-C protections, legacy charging modes, and automotive ESD safeguards. It integrates a high-efficiency buck-boost power stage with programmable output voltages of 5V, 9V, 15V, and 20V. Its advanced protection features include overcurrent, overvoltage, short-circuit, and reverse-voltage protections, making it ideal for multimedia hubs, rear-seat entertainment, and dedicated charging modules in automotive environments. The device operates from 4.5V to 36V input and communicates via I2C, ensuring robust, flexible, and safe power delivery in vehicles.
MAXIM INTEGRATED / ANALOG DEVICES MAX25430AATLFV Automotive USB-PD Controller Specifications:
- Input Voltage Range: 4.5V to 36V, load-dump tolerant up to 40V
- Output Voltages: 5V, 9V, 15V, 20V (fixed options)
- Maximum Output Current: 5.0A
- Switching Frequencies: 220kHz, 300kHz, 400kHz programmable
- Protection Features: Overcurrent, overvoltage, short-to-ground, VCONN overcurrent, reverse voltage
- Input Ripple Current: Calculated based on inductor selection and ripple ratio
- Efficiency: Scalable, optimized via programmable parameters, typical in high-power automotive applications
- Communication Interface: I2C (up to 1MHz), includes alert and diagnostic registers
- Operating Temperature: -40°C to 125°C
- Package: 6mm x 6mm TQFN
- Compliance: USB Type-C, USB Power Delivery 2.0/3.0, USB BC1.2, Apple MFi, Samsung Charger

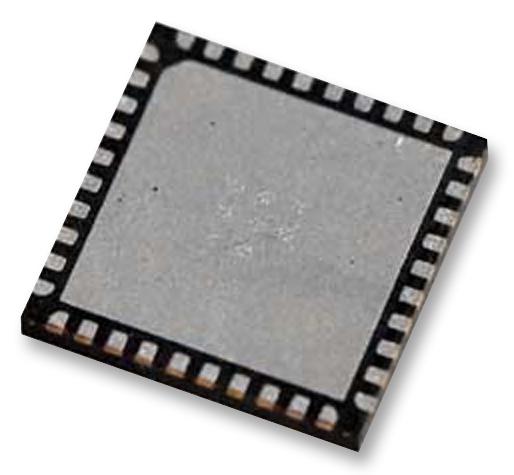

Buy the Maxim MAX25430U2 – Reliable USB-PD Buck-Boost for Automotive Applications
Discover the MAX25430, a high-performance automotive-grade USB-PD buck-boost controller. It delivers up to 5A, supports multiple fixed voltage options, and includes comprehensive protections suitable for vehicle multimedia and charging modules. Its scalable efficiency, I2C control interface, and automotive safety features like overcurrent, overvoltage, and short-circuit protections ensure robust and reliable power delivery. Designed for ease of integration, this device is perfect for automotive infotainment, rear-seat entertainment, and dedicated charging systems, providing advanced power management with proven automotive compliance.
Buy Maxim MAX25430A now and experience unmatched reliability, efficient power conversion, and comprehensive automotive protections in your design.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX25430AATLFV?
You can click on the BUY or RFQ button to purchase MAX25430AATLFV from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX25430AATLFV?
You can download the MAX25430AATLFV datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX25430AATLFV?
MAXIM INTEGRATED / ANALOG DEVICES
