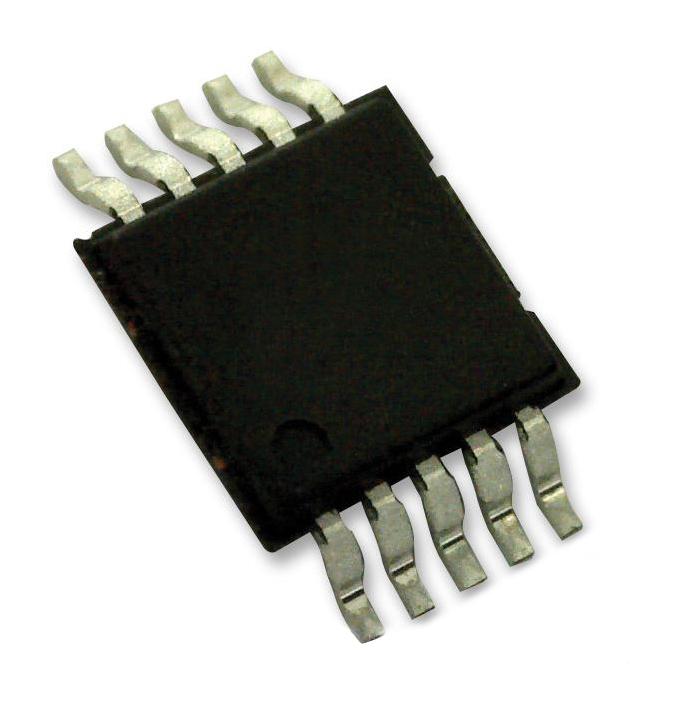

MAXIM INTEGRATED / ANALOG DEVICES MAX4704EUBT Analog Multiplexer
The MAX4704 is a low-voltage, 4-channel analog multiplexer operating from a single +1.8V to +5.5V power supply. It features break-before-make switching, low on-resistance, high bandwidth, and excellent signal isolation, suitable for video, audio, and data acquisition applications. Its digital inputs are compatible with +1.8V logic, and it offers guaranteed low leakage currents, making it a reliable choice for portable and battery-operated equipment. The compact QFN package ensures easy integration into space-constrained systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX4704EUBT Analog Multiplexer Specifications:
- Supply Voltage Range: +1.8V to +5.5V
- On-Resistance: 60Ω (typ) at +2.7V supply
- On-Resistance Match: ≤3Ω
- Bandwidth: >200MHz
- Switching Time: 60ns (t_on), 20ns (t_off)
- Leakage Currents: <0.1nA at 25°C
- Peak Power Dissipation: 330mW (12-pin QFN)
- Operating Temperature Range: -40°C to +85°C
- Package: 12-Pin QFN (3mm x 3mm) with exposed pad
- Input Logic Compatibility: 1.8V CMOS, TTL compatible (V+ = 3V)
- Off-Isolation: -85dB at 1MHz
- Crosstalk: -90dB at 1MHz
- Total Harmonic Distortion: 0.02%
- Charge Injection: 5pC
- Power Supply Currents: 1μA at V+ = 3V, 05nA leakage on-off
Buy the Buy Maxim MAX4704EUBT Part Number MAX4704EUBT Online
Purchase the Maxim MAX4704EUBT online now—this high-performance 4-channel analog multiplexer offers low on-resistance, wide bandwidth, and compact QFN package, making it ideal for space-constrained audio, video, and data acquisition applications. Accurate signal switching with minimal leakage currents ensures high reliability. Its compatibility with low-voltage logic and temperature resilience makes it suitable for portable and battery-operated systems. Enjoy quick, hassle-free online ordering and integrate this reliable component into your electronic designs for superior performance and durability.
Get Maxim MAX4704EUBT today—designed for precision signal routing with low on-resistance and space-efficient QFN packaging.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX4704EUBT?
You can click on the BUY or RFQ button to purchase MAX4704EUBT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX4704EUBT?
You can download the MAX4704EUBT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX4704EUBT?
MAXIM INTEGRATED / ANALOG DEVICES
