MAXIM INTEGRATED / ANALOG DEVICES MAX17575EVKITA# Datasheet & Stock

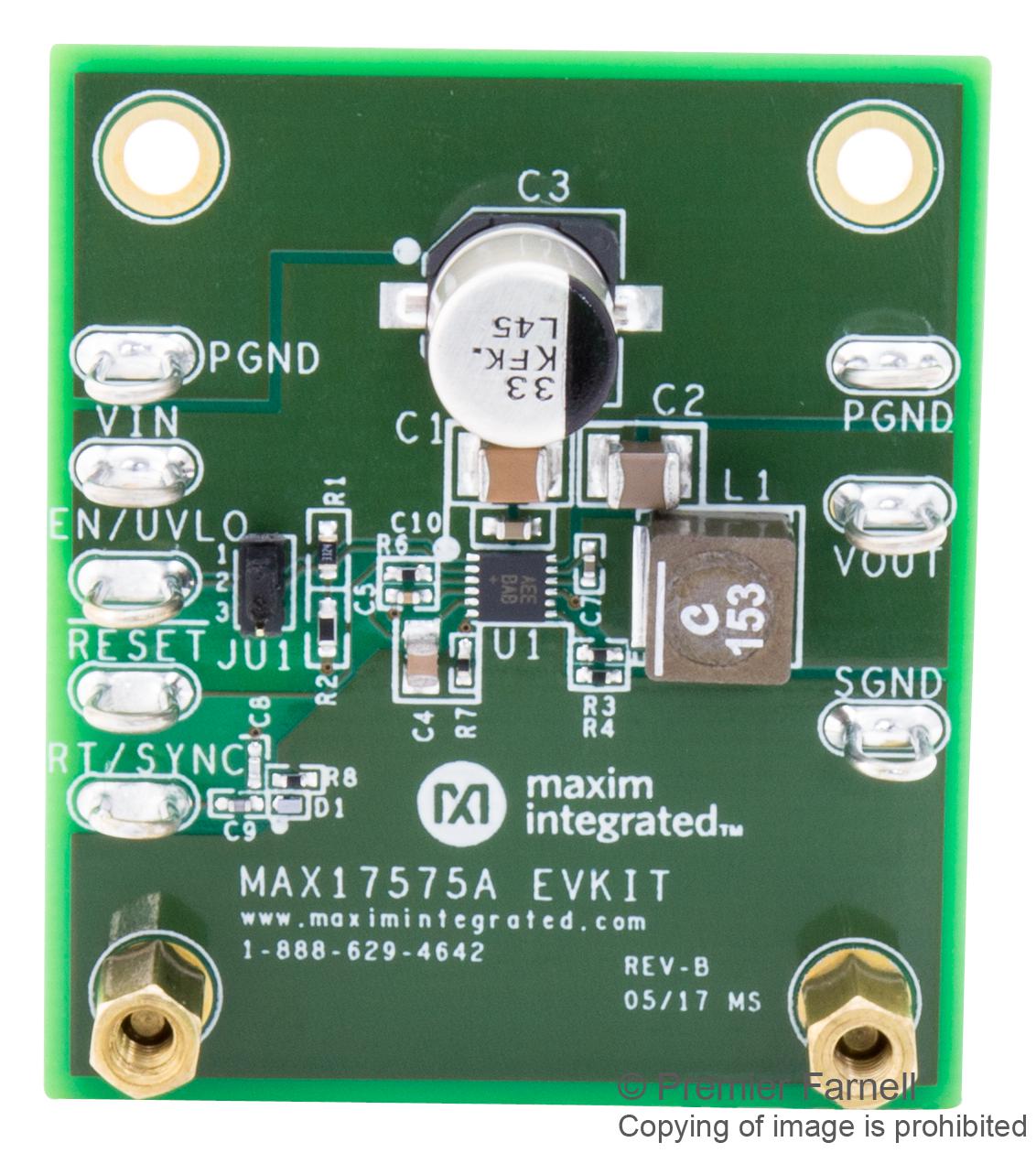

The MAX17575EVKITA# from Maxim Integrated Products is an evaluation kit (EV kit) for MAX17575. It provides a proven design to evaluate the MAX17575 high-voltage, high-efficiency, synchronous step-down DC-DC converter. The EV kit is preset for 3.3V output at load currents up to 1.5A and features a 500KHz switching frequency for optimum efficiency and component size. The EV kit features adjustable input undervoltage lockout, adjustable soft-start, open-drain active-low RESET signal and external frequency synchronization.




Operates from a 4.5V to 60V input supply

Enable/UVLO input, resistor-programmable UVLO threshold

Adjustable soft-start time

Open-drain active-low RESET output

External frequency synchronization

Overcurrent and overtemperature protection

Proven PCB layout

Fully assembled and tested

Base Station Power Supplies; Distributed Supply Regulation; General-Purpose Point-of-Load;

High Voltage Single-Board Systems; Industrial Control Power Supplies; Wall Transformer Regulation
