MAXIM INTEGRATED / ANALOG DEVICES MAX4890ETJT Ethernet Switch
The MAX4890ETJ+T from Maxim Integrated Products is a high-speed, bidirectional switch designed for Ethernet LAN applications. Packaged in a 32-pin TQFN, it facilitates 10/100/1000 Base-T Ethernet connections by switching signals from interface transformers to a single Ethernet PHY, simplifying device design and reducing manufacturing costs. The switch features very low on-resistance and capacitance, ensuring compliance with Ethernet insertion and return-loss specifications. It is suitable for notebooks, docking stations, servers, routers, and other telecommunication equipment requiring signal routing, redundancy, or video switching. Operating from a +3V to +3.6V power supply within a temperature range of -40°C to 85°C, it offers low crosstalk (-45dB at 1MHz), minimal insertion loss (0.6dB at 1MHz), and a bandwidth of 1GHz. It also provides board-level redundancy protection, with optimized pin configurations for easy transformer and PHY interfacing.
MAXIM INTEGRATED / ANALOG DEVICES MAX4890ETJT Ethernet Switch Specifications:
- Package: 32-pin TQFN-EP, 5mm x 5mm
- Supply Voltage: +3.0V to +3.6V
- Operating Temperature Range: -40°C to +85°C
- On-Resistance: 4Ω (typ), 6.5Ω (max)
- On-Resistance Match: 2Ω (typ)
- Off-Leakage Current: 1pA (max)
- Bandwidth: 1GHz
- Insertion Loss: 0.6dB at 1MHz
- Return Loss: -19dB at 1MHz
- Crosstalk: -45dB at 1MHz
- Bandwidth: 1GHz
- Isolation and Crosstalk: Low capacitance and high isolation for Ethernet compliance
- Low Quiescent Current: 450pA (max)
- ESD Protection: Human Body Model 2kV

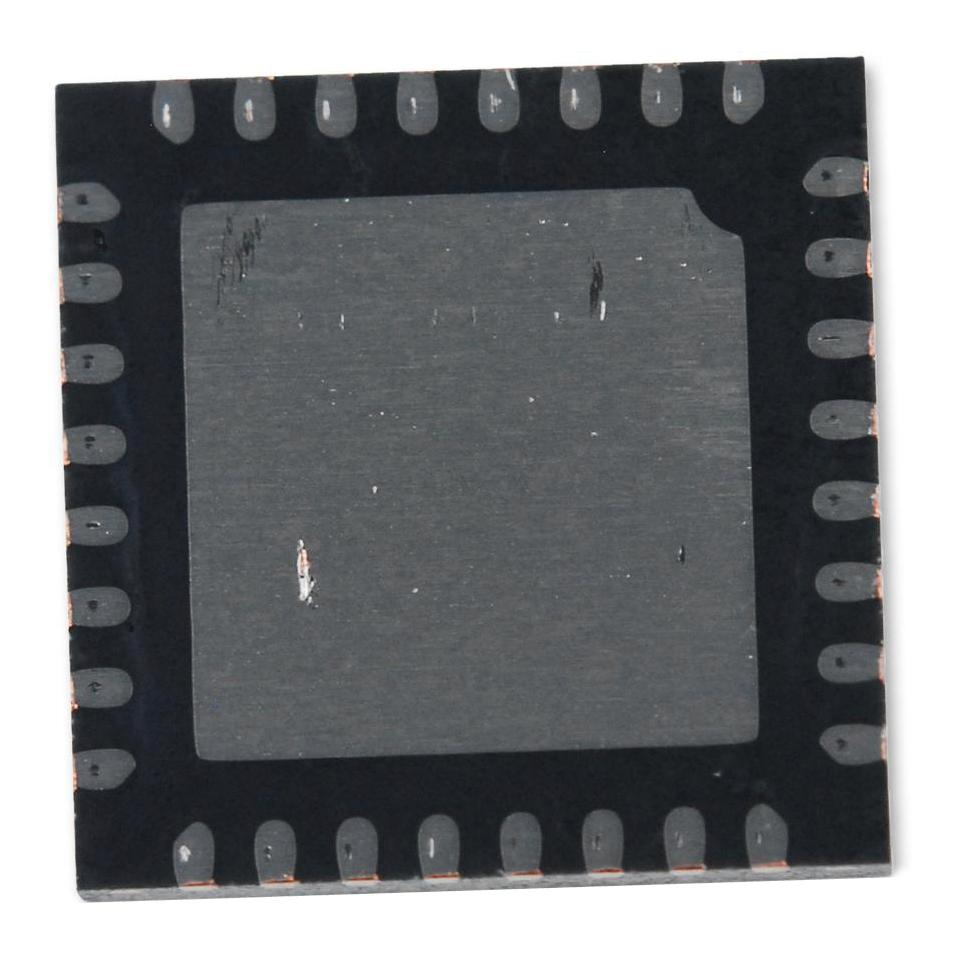

Buy the Maxim Series MAX4890 Ethernet Switch: MAX4890ETJ+T
Purchase the Maxim Ethernet Switch MAX4890ETJ+T online today to ensure low resistance, high bandwidth, and reliable signal routing for your networking and telecommunications applications. Designed for 10/100/1000 Base-T Ethernet systems, it provides low insertion loss, excellent crosstalk performance, and space-saving TQFN packaging. Ideal for notebooks, docking stations, routers, and server equipment, this high-speed switch ensures seamless connectivity, robust electrical characteristics, and board-level redundancy features for enhanced system reliability.
Buy Maxim series MAX4890ETJ+T now and experience unmatched reliability and performance in your Ethernet networking projects.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX4890ETJT?
You can click on the BUY or RFQ button to purchase MAX4890ETJT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX4890ETJT?
You can download the MAX4890ETJT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX4890ETJT?
MAXIM INTEGRATED / ANALOG DEVICES
