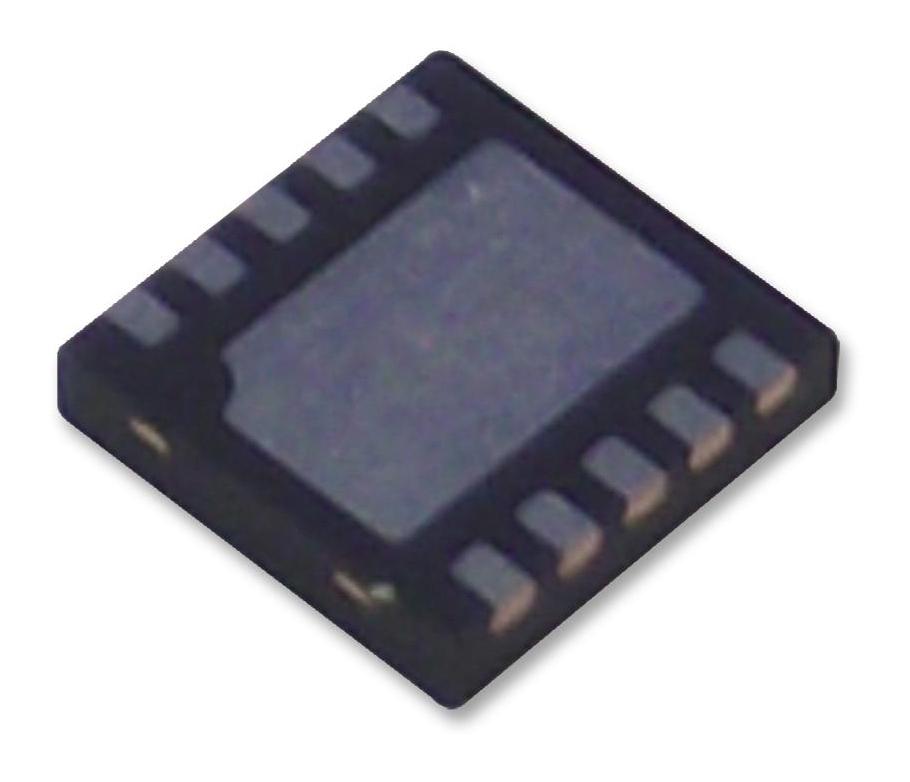

MAXIM INTEGRATED / ANALOG DEVICES MAX4906ELBT High-Speed USB Switch
The MAX4906ELB is a high-performance USB 2.0 switch designed for high-speed (480Mbps) and low/full-speed switching applications. It features low on-resistance and on-capacitance, with fault protection up to 5.5V, making it robust against shorts and supply issues. Operating from a single 3.0V to 3.6V supply, it includes shutdown mode to minimize power consumption, and its small 2mm x 2mm uDFN package ensures space efficiency for portable devices such as smartphones, USB hubs, networking equipment, and digital peripherals, supporting reliable, high-speed data routing.
MAXIM INTEGRATED / ANALOG DEVICES MAX4906ELBT High-Speed USB Switch Specifications:
- Package: 2mm x 2mm uDFN
- Supply Voltage: 3.0V to 3.6V
- Fault Protection: Up to 5.5V
- On-Resistance: 4Ω (typ), 8Ω (max)
- On-Capacitance: 4pF (typ), 7pF (max)
- Operating Temperature: -40°C to +85°C
- Quiescent Current: 300nA (max), shutdown current less than 2μA
- Switching Speed: Turn-On time 60 ns, Turn-Off time 30 ns
- Bandwidth: 1 GHz (typ)
- Logic Compatibility: 1.4V to 3.3V logic levels
- Channels: Dual SPDT
- Fault-tolerant: Yes, protected against shorts to supply voltage
- Application: USB data routing, Ethernet, sensor switching, relay replacements
Buy the MAXIM Series USB Switch: High-Speed USB 2.0 Switch MAX4906ELB
Purchase the MAXIM Series USB Switch MAX4906ELB online today to ensure high-performance USB data routing with low resistance, fault protection, and minimal power usage. Perfect for portable devices, Ethernet switching, and digital peripherals. This compact device offers reliable high-speed switching, a wide operating voltage range of 3.0V to 3.6V, and fault protection features up to 5.5V, making it suitable for various high-speed switching applications. Order now for quick delivery and enhance your device's data handling capabilities.
Get MAXIM Series USB Switch MAX4906ELB today—built for high-speed data routing, low power consumption, and robust fault protection.
