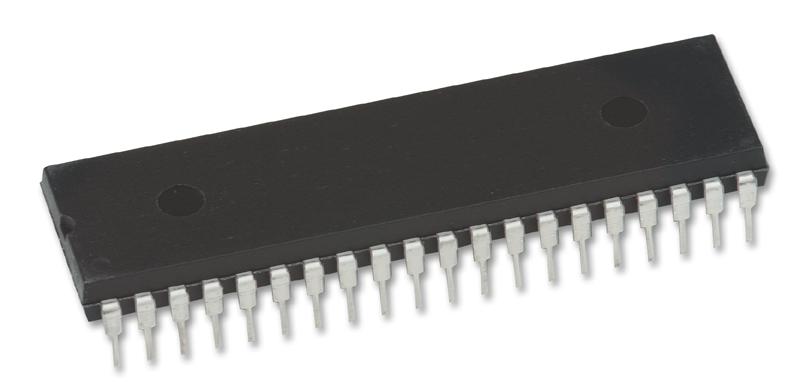

MAXIM INTEGRATED / ANALOG DEVICES ICM7212AMIPL+ Datasheet & Stock

The ICM7212AMIPL+ is a four digit display decoder/driver in 40 pin DIP package. The four digit 7-segment display LED driver includes input data latches, BCD to segment decoder, all level translation and timing circuits needed to drive non multiplexed displays. It is a microprocessor interface type data input configuration that has four BCD data inputs, two digit address lines and two chip selects or write inputs. The LED display driver reduces system cost by eliminating external level translators, external segment drivers and segment current limiting resistors. Typical applications include intelligent instruments, digital panel displays, remote display units and microprocessor to visual communication.




Supply voltage range is 4V to 6V

Operating temperature range from -20°C to 85°C

Non multiplexed common anode LED

Eliminates the need of external components

Code B output

Increased segment on current

Low power of typical 25µW

Operating current is 10µA

Digital Panel Displays; Intelligent Instruments; Microprocessor-to-Visual Communication; Remote Display Units
