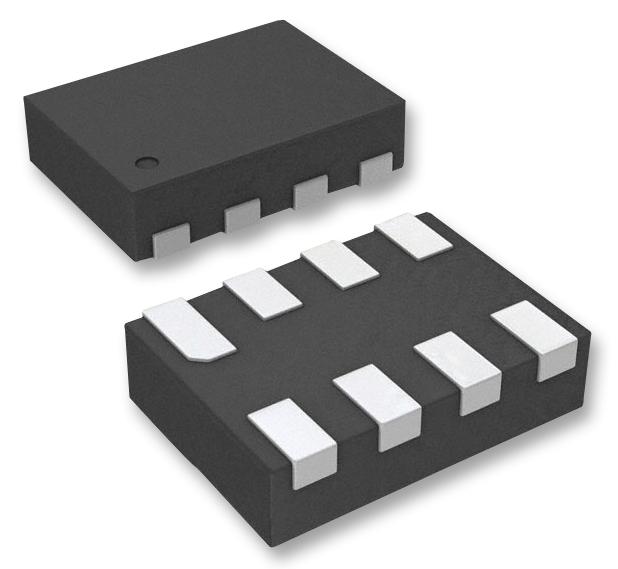

MAXIM INTEGRATED / ANALOG DEVICES MAX4907FELAT USB Analog Switch
The MAX4907F analog switch integrates two single-pole/single-throw switches designed for high-speed USB 2.0 applications at 480Mbps. Operating from a single +3.0V to +3.6V supply, it offers low on-resistance and capacitance, making it ideal for USB low- and full-speed signaling, Ethernet, and switching between multiple USB hosts. Features include fault protection up to +5.5V, low quiescent current of less than 2μA in shutdown, and space-efficient 8-pin uDFN packages suitable for compact devices. The robust design ensures high performance, reliability, and protection in demanding environments.
MAXIM INTEGRATED / ANALOG DEVICES MAX4907FELAT USB Analog Switch Specifications:
- Supply Voltage Range: +3.0V to +3.6V
- Fault Protection: Up to +5.5V shorts
- On-Resistance: Max 7Ω
- On-Capacitance: Max 7pF
- Shutdown Current: Less than 2μA
- Operating Temperature Range: -40°C to +85°C
- Peak Current: 240mA (pulsed, 1ms, 10%)
- Package Type: 8 uDFN, 2mm x 2mm
- Bandwidth: 1GHz (typical)
- Analog Signal Range: 0 V+ to V+
- Leakage Current: Typical <1nA
- Logic Compatibility: 1.4V to 3.3V logic levels
- V+ Supply Pin: Bypassed with 0.1μF capacitor
- Fault Protection: Yes, up to +5.5V
- Quiescent Current: <2μA during shutdown
- Insertion Loss: Typical 3dB at 10MHz
Buy the Maxim MAX4907F – Reliable USB Switch for Industrial Applications
Acquire the Maxim MAX4907F analog switch online today and enhance your system's performance. Its low resistance, fault protection, and compact form factor make it perfect for demanding USB, Ethernet, and industrial switching applications. Designed for high-speed data transfer, it operates from a single 3.0V to 3.6V supply and includes features like low quiescent current and fault protection up to +5.5V. Ensure reliable, protected signal switching with this space-efficient, high-performance component suitable for various industrial and consumer electronics projects.
Order your Maxim MAX4907F analog switch today and ensure robust, efficient signal routing in high-speed USB, Ethernet, and industrial systems.
