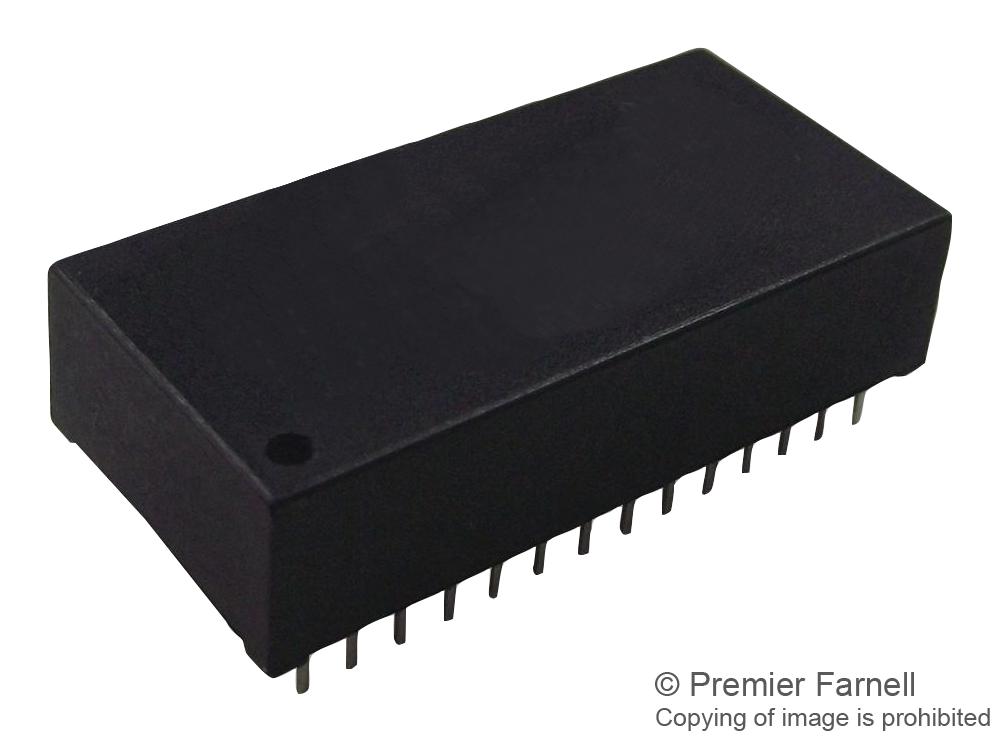

MAXIM INTEGRATED / ANALOG DEVICES DS1230Y100 Non-volatile SRAM
The DS1230Y-100+ is a 256K non-volatile static RAM, organized as 32,768 words by 8 bits. It features an integrated lithium energy source and control circuitry that continuously monitors the supply voltage (VCC). In case of power failure or out-of-tolerance voltage, the device automatically switches to backup power and enables write protection to prevent data loss. This DIP-package device can replace standard 32K x 8 static RAMs and 28-pin EEPROMs, offering seamless pin compatibility and improved performance. It supports unlimited write cycles, has a minimum data retention of 10 years without external power, and consumes low power CMOS technology. The device operates within a ±10% VCC voltage range and requires no additional support circuitry for microprocessor interfaces.
MAXIM INTEGRATED / ANALOG DEVICES DS1230Y100 Non-volatile SRAM Specifications:
- Organization: 32,768 words by 8 bits
- Memory Type: Non-volatile static RAM
- Voltage Range: ±10% VCC (4.5V to 5.5V for DS1230Y-100+)
- Data Retention: 10 years minimum without external power
- Write Cycles: Unlimited without limit
- Power Consumption: Low power CMOS technology
- Protection: Automatic write protection during power loss
- Operating Temperature: -40°C to +85°C (Industrial temperature)
- Package: 28-pin DIP (standard), JEDEC standard
- Control Circuitry: Monitors supply voltage for data integrity
- Backup Power: Lithium energy source integrated for data retention during power outages
- Pin Compatibility: Replaces 32K x 8 static RAM and 28-pin EEPROMs easily
- Features: Self-contained lithium backup, automatic power switching, no support circuitry needed
Buy the Buy Maxim Integrated DS1230Y-100+ Non-volatile SRAM Part Number DS1230Y-100+ Online
Purchase the Maxim DS1230Y-100+ non-volatile SRAM online today for dependable, high-performance storage. Featuring seamless pin compatibility with 32K x 8 static RAMs and EEPROMs, this device offers unlimited write cycles and a minimum of 10 years data retention without external power. Its integrated lithium backup ensures data safety during power outages, making it ideal for industrial and critical applications. Low power CMOS technology and no support circuitry required simplify your design. Get reliable, high-quality memory solutions with fast delivery and excellent performance.
Order your Maxim SeriesDS1230Y-100+ lithium-backed non-volatile SRAM today and ensure reliable data retention with easy replacement for standard static RAMs and EEPROMs.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES DS1230Y100?
You can click on the BUY or RFQ button to purchase DS1230Y100 from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part DS1230Y100?
You can download the DS1230Y100 datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of DS1230Y100?
MAXIM INTEGRATED / ANALOG DEVICES
