MAXIM INTEGRATED / ANALOG DEVICES MAX5100BEUPT Quad DAC
The MAX5100BEUP+T from Maxim Integrated is a low-power, quad, parallel 8-bit digital-to-analog converter with rail-to-rail voltage outputs, housed in a compact 20-pin TSSOP package. Operating from 2.7V to 5.5V, it features internal precision buffers for high accuracy and shared reference input. Double-buffered registers ensure glitch-free updates, and the LDAC pin offers simultaneous output updates. With a shutdown mode that draws only 1nA and power-on reset, it’s ideal for digital gain adjustments, programmable attenuators, and power bias control in portable and precision electronic applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX5100BEUPT Quad DAC Specifications:
- Supply Voltage Range: +2.7V to +5.5V
- Package: 20-pin TSSOP
- Resolution: 8 Bits
- Outputs: Rail-to-Rail Voltage Buffered
- Reference Input: Shared, ground to Vpp
- Input Registers: Double-buffered for glitch-free updates
- Low Power Consumption: 0.4mA operating, 1nA shutdown
- Output Voltage Range: 0 to Vpp
- Power-On Reset: All registers set to zero
- Active-Low LDAC pin for simultaneous update
- Reference Input Resistance: 460kΩ
- Reference Voltage Range: 0 to Vpp
- Maximum Current per Pin: 50mA
- Operating Temperature: -40°C to +85°C
- Package Dissipation: 559mW at 70°C
- Typical Slew Rate: 0.6V/μs
- Settling Time: 6μs within 1/2LSB

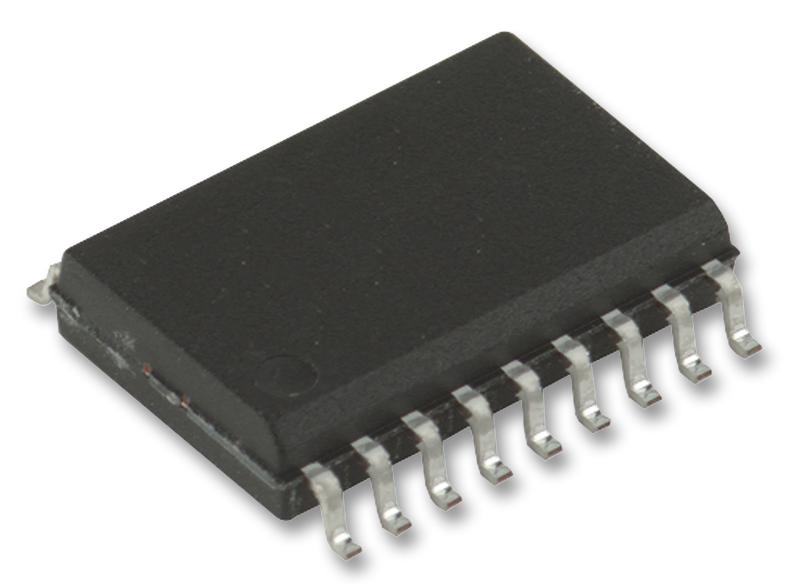

Buy the Maxim Series MAX5100 Digital-to-Analog Converter: MAX5100BEUPT
Purchase the Maxim Series MAX5100BEUPT online now to access a high-precision, low-power quad 8-bit DAC with rail-to-rail outputs. Featuring double-buffered registers, shared reference input, and a shutdown mode that consumes just 1nA, it is perfect for digital gain adjustments, programmable attenuators, and power bias controls. This compact TSSOP package ensures easy integration into your electronic designs. Benefit from reliable performance, swift update capabilities, and a power-on reset that simplifies system initialization for your portable and precision applications. Experience seamless online buying today.
Order your Maxim Series MAX5100BEUPT today and enhance your portable electronic projects with this high-precision, low-power quad DAC solution.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX5100BEUPT?
You can click on the BUY or RFQ button to purchase MAX5100BEUPT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX5100BEUPT?
You can download the MAX5100BEUPT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX5100BEUPT?
MAXIM INTEGRATED / ANALOG DEVICES
