MAXIM INTEGRATED / ANALOG DEVICES MAX5161NEZTT Digital Potentiometer

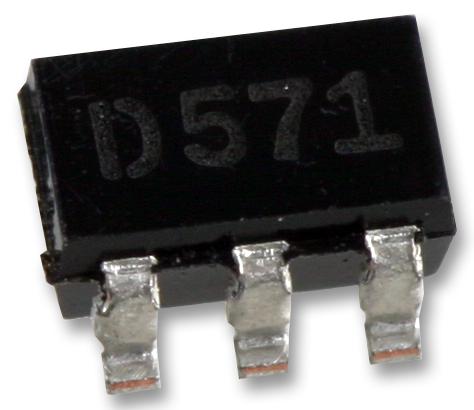

The MAX5161NEZT+T is a low-power, digital potentiometer in a 6-pin SOT-23 package. It functions as a digitally controlled variable resistor with a linear taper, similar to a mechanical potentiometer. The device features a fixed resistor with 32 digitally selectable tap points controlled via a two-line serial interface. It offers a resistance of 200 kΩ, a wiper resistance of 400 Ω, and supports supply voltages from 2.7V to 5.5V. Its operating temperature range is from -40°C to 85°C. The IC has a low resistance temperature coefficient of 50 ppm/°C, with end-to-end and ratiometric coefficients of 5 ppm/°C, making it suitable for applications requiring stable, low-temperature-coefficient variable resistors. Typical uses include LCD screen adjustment, volume control, and replacing mechanical potentiometers. Features include glitchless switching, power-on reset with wiper at midscale, high accuracy with ±1LSB DNL and ±0.5LSB INL, and 2 kV ESD protection.

View MAX5161NEZTTDatasheet [pdf]

Buy the Maxim Series Low-Power Digital Potentiometer: MAX5161NEZT+T

Order the Maxim MAX5161NEZT+T digital potentiometer online today—compact, high-precision, low-power resistor with 32 tap points. Perfect for LCD contrast, volume control, or replacing mechanical potentiometers. Supports voltages from 2.7V to 5.5V and delivers stability with low temperature coefficient of 50 ppm/°C. Features include glitchless switching, midscale reset, high accuracy, and robust ESD protection. Its small SOT-23 package makes it ideal for space-constrained electronic adjustments in industrial, consumer, or communication devices, ensuring reliable, long-lasting performance.

Get Maxim MAX5161NEZT+T today—compact digital resistor ideal for LCD adjustment and volume control with low temperature drift.
