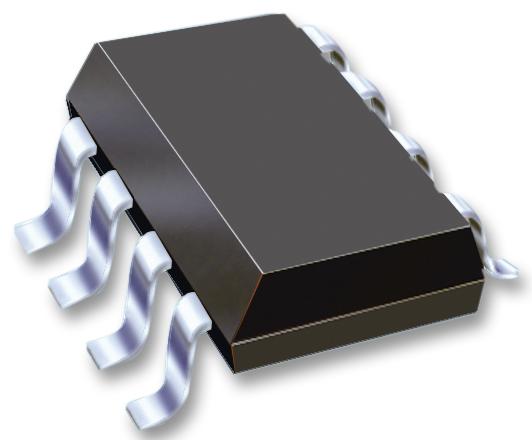

MAXIM INTEGRATED / ANALOG DEVICES MAX518BCSA Dual DAC
The MAX518BCSA is an 8-bit dual digital-to-analog converter (DAC) that operates from a 5V single supply. It features rail-to-rail output buffers, a simple 2-wire serial interface supporting data rates up to 400kbps, and internal software protocol for easy communication. The device includes separate reference inputs for each DAC, allowing independent full-scale voltage control. Its space-saving 8-pin SO package makes it suitable for industrial controls, automatic test equipment, and programmable attenuation applications. Power-on reset ensures outputs default to zero volts at startup, while low quiescent current modes optimize power consumption.
MAXIM INTEGRATED / ANALOG DEVICES MAX518BCSA Dual DAC Specifications:
- Resolution: 8 Bits
- Supply Voltage: +5V
- Output Buffer: Rail-to-Rail
- Packages: 8-pin SO
- Reference Inputs: Separate for each DAC, range includes supply rails
- Communication Interface: 2-wire serial, I2C compatible, up to 400kbps
- Power-On Reset: Outputs at 0V
- Power-Down Mode: 4μA supply current
- Operating Temperature Range: 0°C to +70°C
- Output Voltage Swing: Rail-to-Rail from OV to Vpp
- Input Resistance (code dependent): 16Ω to 24Ω
- Input Capacitance (code dependent): Max 30pF at FF hex
- Typical Output Slew Rate: 1V/μs
- Total Unadjusted Error: 1.5 LSB
- Differential Nonlinearity: Guaranteed monotonic
- Full-Scale Error: ±20mV
Buy the Maxim Series MAX518 Dual DAC: MAX518BCSA
Enhance your electronic projects with the Maxim MAX518BCSA, a high-precision dual 8-bit DAC with rail-to-rail outputs, supporting a 5V single supply. Its simple 2-wire serial interface ensures easy integration, while internal reference inputs allow independent voltage control for each DAC channel. Compact 8-pin SO package makes it ideal for space-constrained industrial and automation systems. Power-on reset guarantees consistent startup conditions, and low power consumption extends operational efficiency. Perfect for applications requiring precise analog voltage adjustment, auto-test, and programmable attenuation.
Buy Maxim MAX518BCSA now and experience unmatched reliability, high-precision dual DACs with rail-to-rail outputs for industrial and test applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX518BCSA?
You can click on the BUY or RFQ button to purchase MAX518BCSA from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX518BCSA?
You can download the MAX518BCSA datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX518BCSA?
MAXIM INTEGRATED / ANALOG DEVICES
