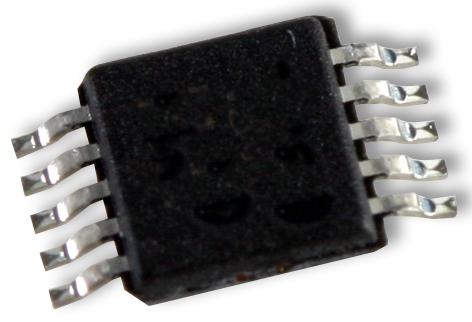

MAXIM INTEGRATED / ANALOG DEVICES MAX5705BAUB Voltage DAC
The MAX5705BAUB+ is a compact, single-channel, 12-bit buffered output voltage DAC with internal reference and SPI interface in a 10-pin µMAX package. It features selectable internal references of 2.048V, 2.5V, or 4.096V, and supports rail-to-rail operation with a 100kΩ external reference load. The device resets output to zero volts on power-up for safety, with low power consumption under 1mW. Operating from 2.7V to 5.5V over -40°C to 125°C, it offers high accuracy, low offset, fast settling time, and configurable power-down modes, suitable for programmable power supplies and control systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX5705BAUB Voltage DAC Specifications:
- Resolution: 12 bits
- Internal references: 2.048V, 2.5V, 4.096V
- External reference support: 1.24V to Vpp
- Supply Voltage: 2.7V to 5.5V
- Analog Output Range: 0V to VReF
- Output Buffer: Rail-to-rail, drives loads up to 2kΩ
- Differential Nonlinearity: ±0.2LSB
- Integral Nonlinearity: ±0.5LSB
- Offset Error: ±0.5mV
- Gain Error: ±0.1% FS
- Settling Time: 6.3μs
- Supply Current: approximately 155μA at 3V
- Operating Temperature: -40°C to 125°C
- Power-down modes: three options with output impedance 1kΩ, 100kΩ, or high impedance
- Power-up reset: zero volts
- Serial Interface: 50MHz SPI/QSPI/MICROWIRE/DSP compatible
- Package: 10-pin µMAX
- Load Capacity: up to 2kΩ
- Switching Noise: glitch impulse 5ns
- Reference Load: 100kΩ to external reference
- Line and load regulation: consistent performance
- Applications include programmable voltage/current supplies, sensor calibration, control systems.
Buy the Maxim Series MAX5705 Buffer Output Voltage DAC: 12-Bit, 2.048V-4.096V, SPI Interface
Purchase the Maxim Series MAX5705 voltage DAC online today for high accuracy, low power operation, and flexible reference options. Perfect for programmable power supplies, signal calibration, and control systems, this 12-bit buffered output device features an internal reference with options of 2.048V, 2.5V, or 4.096V, supporting rail-to-rail operation with an external reference load of 100kΩ. Operating from 2.7V to 5.5V and capable of directly driving loads up to 2kΩ, it ensures fast settling time, low offset and gain errors, and safe power-up reset for dependable performance in demanding applications.
Order your Maxim Series MAX5705 voltage DAC today and enhance your control and instrumentation projects with precision and reliability.
