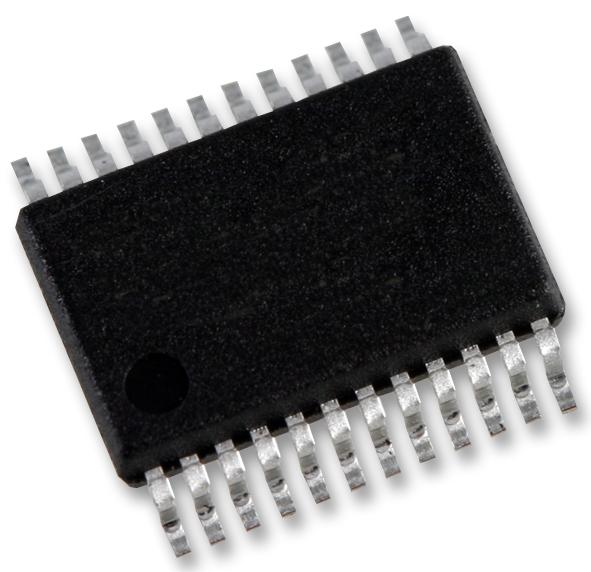

MAXIM INTEGRATED / ANALOG DEVICES MAX521ACAG octal voltage DAC
The MAX521ACAG+ is an octal, 8-bit voltage output digital-to-analog converter (DAC) packaged in a 24-pin SSOP. It features a simple 2-wire serial interface that supports communication with multiple devices at data rates up to 400 kbps. Operating from a single +5V supply, the device includes rail-to-rail output buffers for reduced system size and component count when driving loads. It supports an input reference range extending across both supply rails and has individual reference inputs for each DAC channel. The MAX521 offers low power shutdown mode, reducing supply current to 4µA, and includes a power-on reset to initialize DAC outputs to 0V. The device is suitable for minimum component analog systems, digital offset and gain adjustments, automatic test equipment, and programmable attenuators. Features include a voltage output slew rate of 1V/µs, total unadjusted error of ±1.5 LSB, zero code error of 18mV, full-scale error of 18mV, output settling time of 6µs with specified load, differential nonlinearity of ±1 LSB, and separate reference inputs for each DAC. The MAX521 is designed for applications in signal processing and industrial systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX521ACAG octal voltage DAC Specifications:
- Resolution: 8 Bits
- Number of DACs: 8
- Output Types: Voltage (rail-to-rail buffers)
- Supply Voltage: +5V (±10%)
- Reference Range: 0 V to V+ (both supply rails)
- Output Slew Rate: 1V/µs
- Settling Time: 6µs with specified load
- Full-Scale Output Voltage: 0 V to V+
- Unadjusted Error: ±1.5 LSB
- Zero Code Error: 18 mV
- Full-Scale Error: 18 mV
- Differential Nonlinearity: ±1 LSB
- Reference Inputs: Individual for each DAC
- Interface: 2-wire serial (I2C compatible)
- Maximum Data Rate: 400 kbps
- Power-down Current: 4µA
- Power-on Reset: Yes, outputs initialize to 0V
- Package: 24-pin SSOP
- Temperature Range: 0°C to +70°C
Buy the Maxim MAX521ACAG – Reliable 8-Bit DAC for Industrial Applications
Purchase the Maxim MAX521ACAG online today—designed for high-precision, low-power digital-to-analog conversion. This octal 8-bit DAC features rail-to-rail outputs, a simple 2-wire serial interface supporting up to 400 kbps, and individual reference inputs. Its robust design includes low power shutdown mode, quick settling time of 6 microseconds, and a power-on reset. Perfect for industrial control, signal processing, calibration, and automatic test equipment, this device offers reliable performance, high accuracy, and ease of integration for your advanced electronic systems.
Get Maxim MAX521ACAG today—built for precision and long-lasting durability in industrial and automation systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX521ACAG?
You can click on the BUY or RFQ button to purchase MAX521ACAG from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX521ACAG?
You can download the MAX521ACAG datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX521ACAG?
MAXIM INTEGRATED / ANALOG DEVICES
