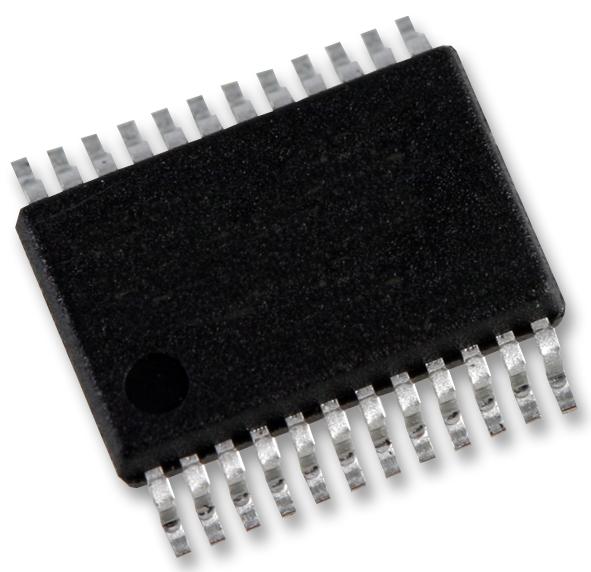

MAXIM INTEGRATED / ANALOG DEVICES MAX530ACAG 12-Bit DAC
The MAX530 is a low-power, 12-bit voltage-output DAC with an internal 2.048V reference and an op amp buffer. Designed for battery-powered and portable applications, it operates from a single +5V supply with only 250A of current. Features include high accuracy, no adjustments needed, and a space-saving SSOP package. It supports unipolar and bipolar output ranges, four-quadrant multiplication, and compatible parallel logic interfaces for microprocessors, making it ideal for industrial control, calibration, and data conversion systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX530ACAG 12-Bit DAC Specifications:
- Resolution: 12 Bits
- Operating Supply Voltage: +5V±10%
- Power Consumption: 250μA typical (single supply), 40μA shutdown
- Input Interface: Double-buffered parallel logic (4, 8, 16-bit compatible)
- Output Range: 0 to VOUT (adjustable with resistors for 0-2.048V, 0-4.096V, or bipolar ranges)
- Reference Voltage: Internal 2.048V, external options available
- Output Buffer: Unity gain stable op amp, drives 2kΩ load, short-circuit protected
- Package: SSOP, size 0.1 in²
- Nonlinearity: Guaranteed monotonic, guaranteed relative accuracy ±0.5LSB
- DNL: Guaranteed monotonic, guaranteed differential nonlinearity ±1LSB
- Temperature Coefficient: ±30 ppm/°C
- Reference Input Resistance: ≥40kΩ (code dependent)
- Reference Capacitance: 10-50pF, with capacitor recommended for stability
- Output Impedance: 0.2Ω
- Reference Output Voltage: 2.048V ±0.024V
- Reference Resistance: 2kΩ
