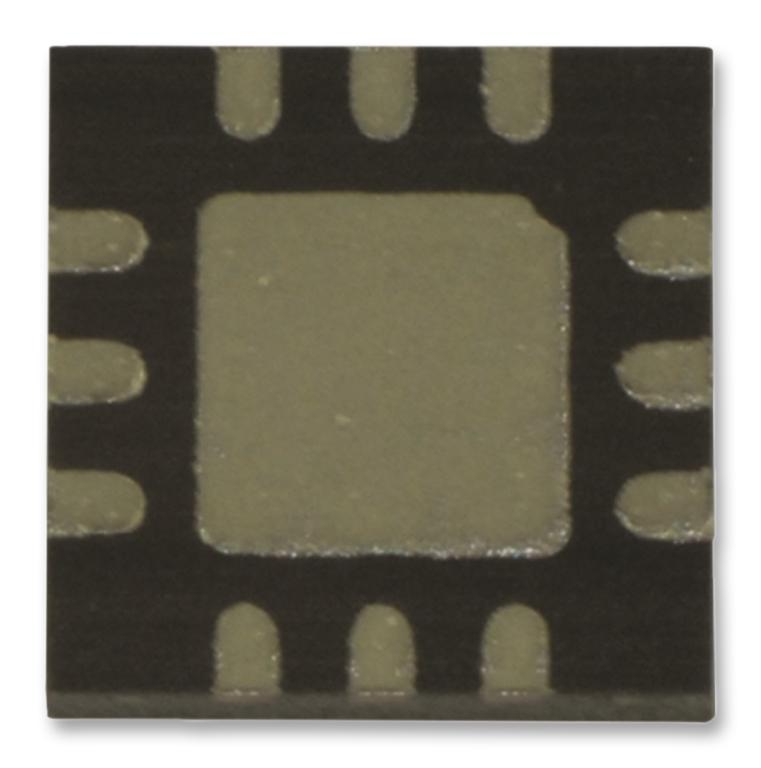

MAXIM INTEGRATED / ANALOG DEVICES MAX9711ETC Mono Audio Amplifier
The MAX9711ETC+ is a 3W mono bridged load audio amplifier in a compact 12-pin TQFN package. Operating from 4.5V to 5.5V, it features industry-leading 100dB PSRR, 0.005% THD+N for clean audio, and click-and-pop suppression for smooth operation. Low power consumption includes a 2mV offset, 7mA quiescent current, and 0.5µA shutdown mode. Ideal for portable electronics like notebooks, flat-panel displays, radios, and powered speakers, it operates from -40°C to 85°C, providing up to 3W at 1% THD+N and 4W at 10% THD+N into 3Ω loads.
MAXIM INTEGRATED / ANALOG DEVICES MAX9711ETC Mono Audio Amplifier Specifications:
- Supply Voltage Range: 4.5V to 5.5V
- Maximum Output Power: 3W into 3Ω load at 1% THD+N
- Total Harmonic Distortion plus Noise: 0.005%
- Power Supply Ripple Rejection Ratio: 100dB
- Quiescent Current: 7mA
- Shutdown Supply Current: 0.5µA
- Operating Temperature Range: -40°C to 85°C
- Offset Voltage: 2mV (Typ)
- Packaging: 12-pin TQFN (4mm x 4mm x 0.8mm)
- Click and Pop Suppression: Yes
- Input Type: Differential/Single-ended
- Output Power (Peak): up to 4W at 10% THD+N
- Protection Features: Thermal Overload, Short-Circuit Protection
- Application: Portable Electronics, Powered Speakers, Flat-Panel Displays, Telecommunication Devices
Buy the Maxim MAX9711 – Reliable Mono Audio Amplifier for Consumer Applications
Purchase the Maxim MAX9711 mono audio amplifier online today to ensure clear, low-distortion sound for your portable and consumer electronics projects. This compact device offers 3W output with industry-leading 100dB PSRR and just 0.005% THD+N, making it suitable for notebooks, TVs, powered speakers, and radios. Its low power consumption and click-and-pop suppression deliver smooth operation, while the wide temperature range ensures reliable performance in various environments. Get yours now and upgrade your audio systems easily and affordably.
Order your Maxim Series MAX9711 mono audio amplifier today and enhance your portable projects with dependable low-distortion audio performance.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX9711ETC?
You can click on the BUY or RFQ button to purchase MAX9711ETC from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX9711ETC?
You can download the MAX9711ETC datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX9711ETC?
MAXIM INTEGRATED / ANALOG DEVICES
